Page 7 of 51 Vetta Head Assembly Instructions Rev D1
.
b) Attach power components and pads

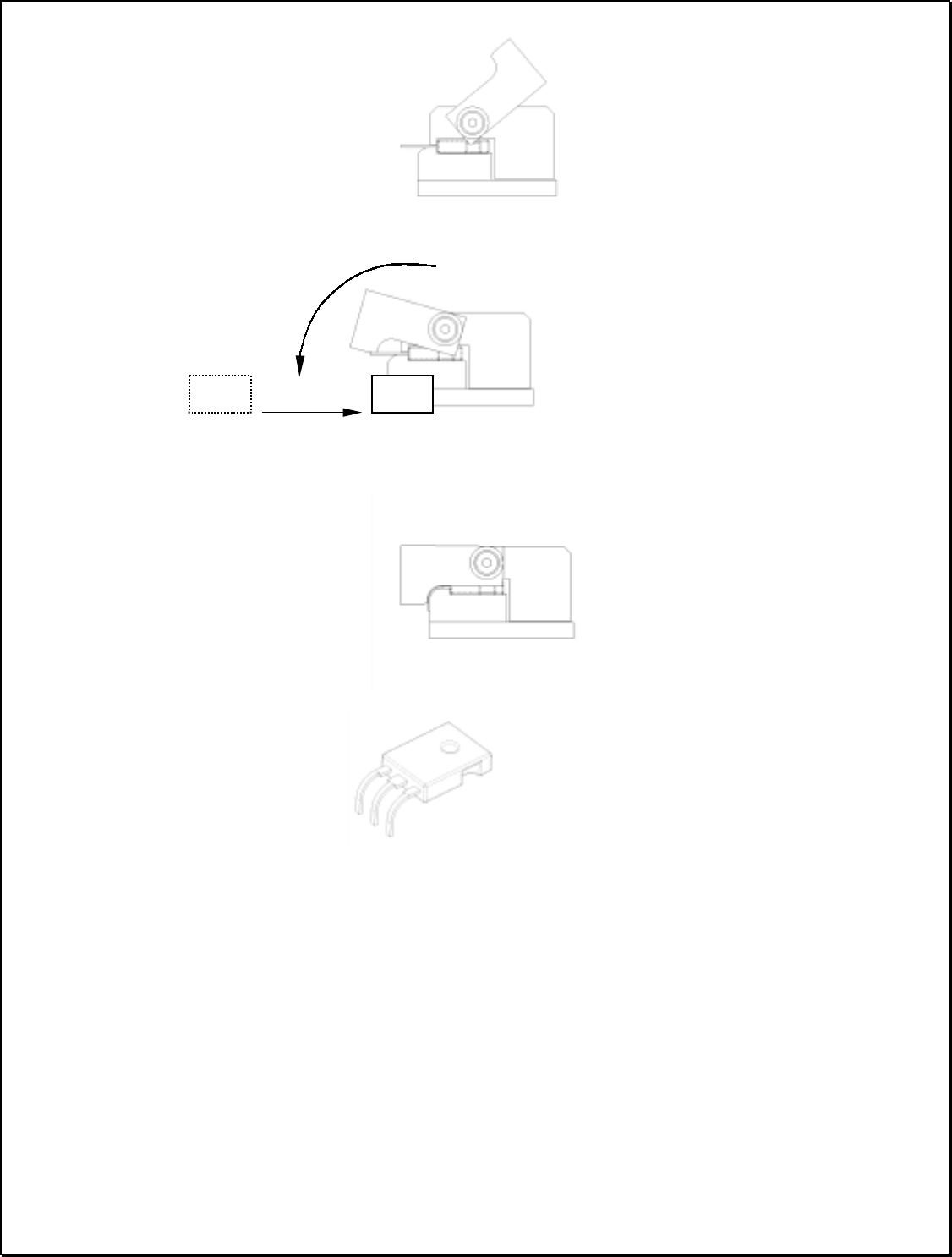

Install Power Components (09-06-0250) on bottom side of PCB. Orient the component so that
the terminal edge points towards the center of the board, while the opposite face points out
toward the edge of the PCB. When properly installed the edge of the Power Component should
meet the edge of the PCB. Insure that the components are lying flush against PCB (see figure
below).
Completed
To completely bend
leads, push a flat
edge against lead tips.
