Page 15 of 51 Vetta Head Assembly Instructions Rev D1

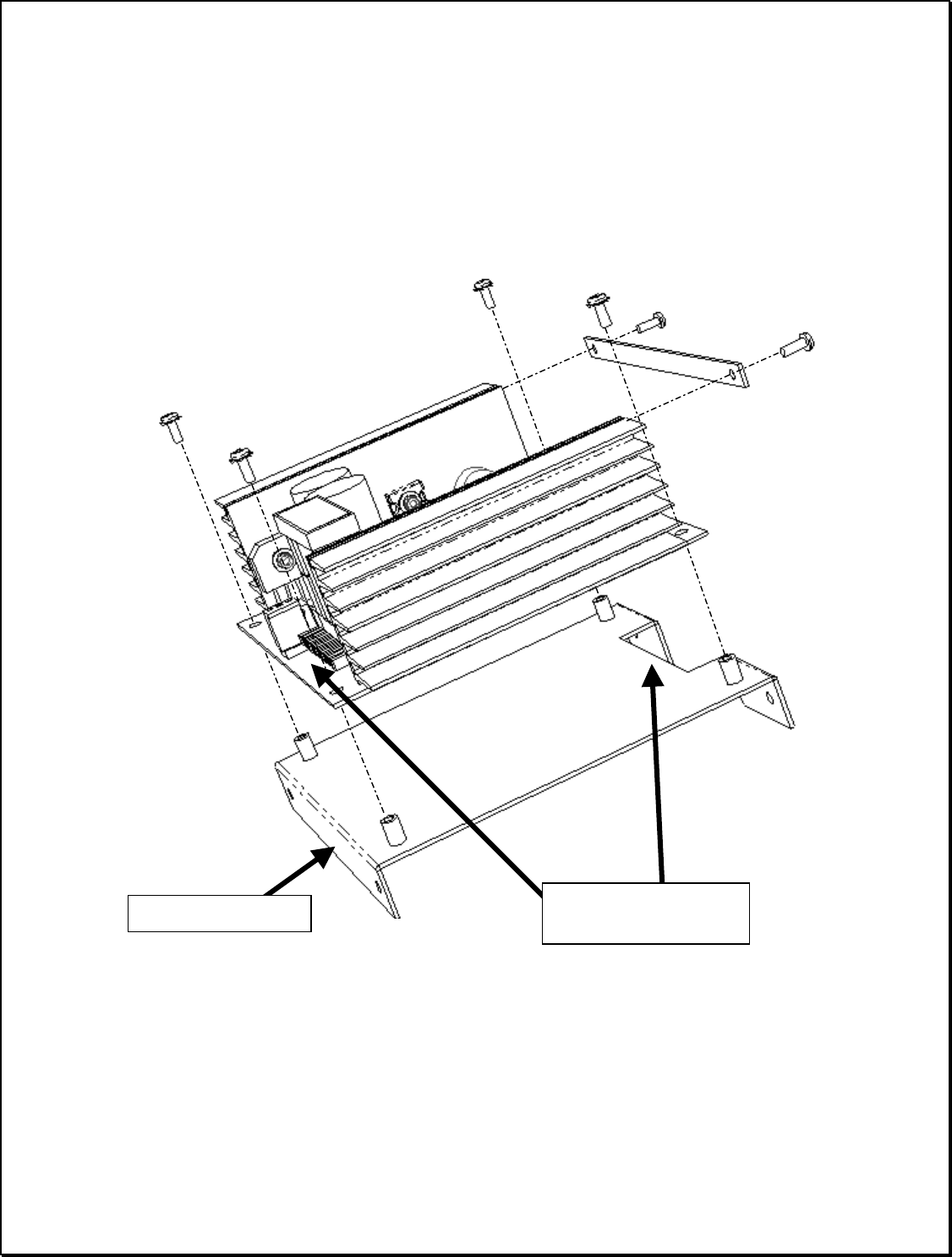

d) Assemble PCBA & Heat Sink Assembly to Power Supply Bracket:
a. Assemble the PCBA to the mounting bracket using (4) #6-32 x7/16 (P/N 30-00-0607). Torque the screws to
10-12 in-lbs.
b. Attach the Power Supply Brace with (2) self-tapping 6-32 Pan Head screws (P/N 30-00-1632
)
as shown.
Screw heads shall be fully seated against the Brace.
Note orientation of cutout
relative to cable headers
Bracket (30-51-0158)
