Page 16 of 51 Vetta Head Assembly Instructions Rev D1
The Chassis Assembly
ITE
M
QTY LINE6 PART NO REV DESCRIPTION
1 1 50-00-0109 B ASSY, ARTWORK, CHASSIS
2 1 50-00-4001 N/A PCBA, FHD 2, LINE FILTER
3 6 30-00-0607 N/A SCR 6-32 x 7/16 LG PHILLIPS PN
4 1 30-51-0040 B COVER PLATE, EXPANSION SLOT
5 6 30-00-0375 N/A SCR 6-32 x .375 LG PHI PN HD, BL OXIDE
6 1 50-00-0104 X3 PCBA, OUTPUT SPEAKER, Vetta HD
7 8 N/A [INCL ASSY] N/A NUT, JACK
8 4 30-00-0018 N/A SCR, 6-32 x 3/4 LG, PHILLIPS FH, STL
9 1 N/A (REF ONLY) N/A ASSY, PWER SUPPLY
10 2 30-00-1012 N/A SCREW #10-32 X 1/2 PHILLIPS PAN ZINC
11 1 50-00-0094 B PCBA, MAIN, AX3
12 4 30-00-4250 N/A SCR, #4-32 x .25, SH METAL, PN HD, BL OXIDE
13 1 50-00-9101 N/A ASSY, POWER AMP HEAD VETTA
14 2 30-03-0001 N/A WASHER #10 EXTERNAL TOOTH LOCKWASHER ZINC
15 2 30-00-0610 N/.A #6-32 x .437 CAPTIVE STAR WASHER

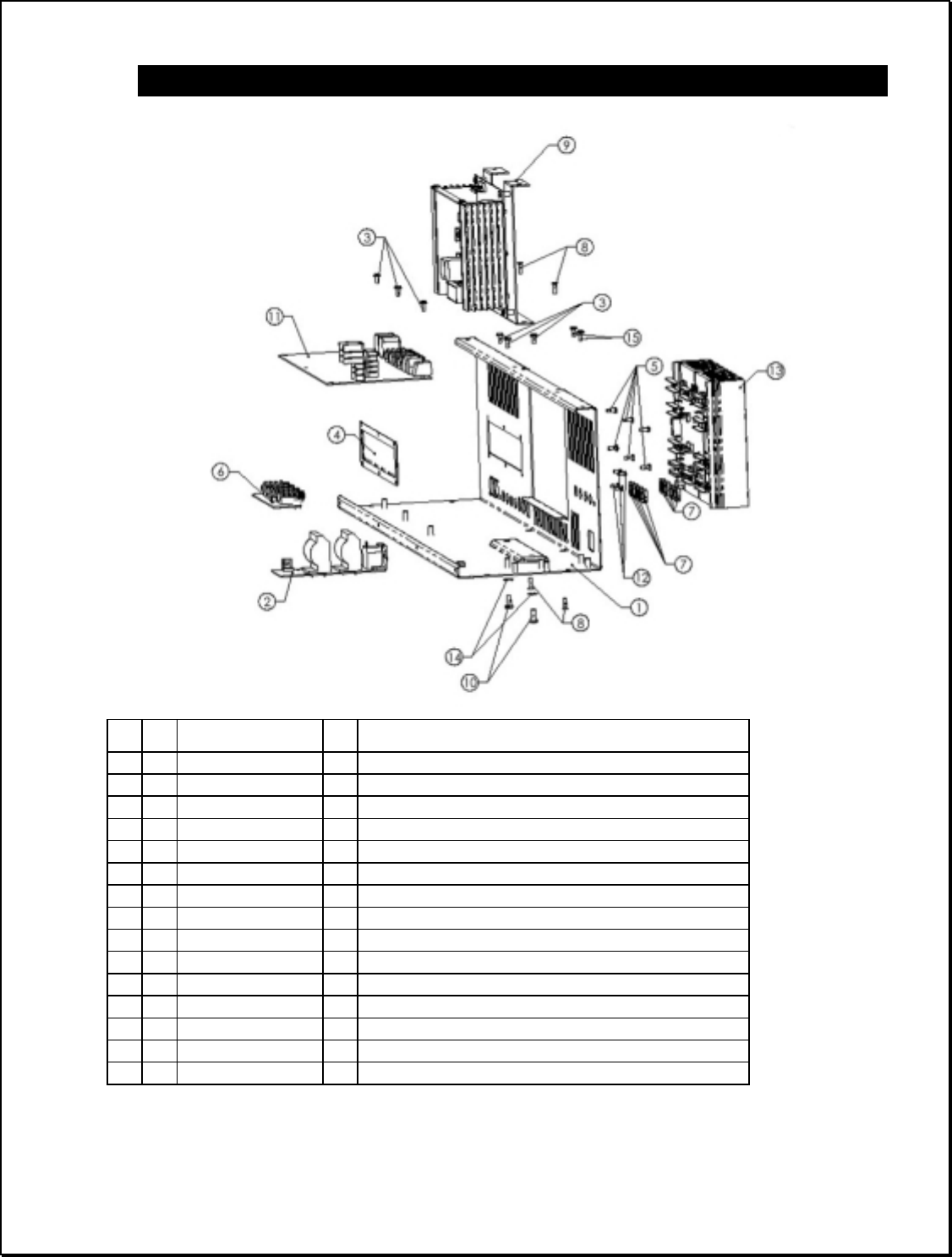

Refer to this graphic
throughout the following
section for aid in locating
the parts discussed.
