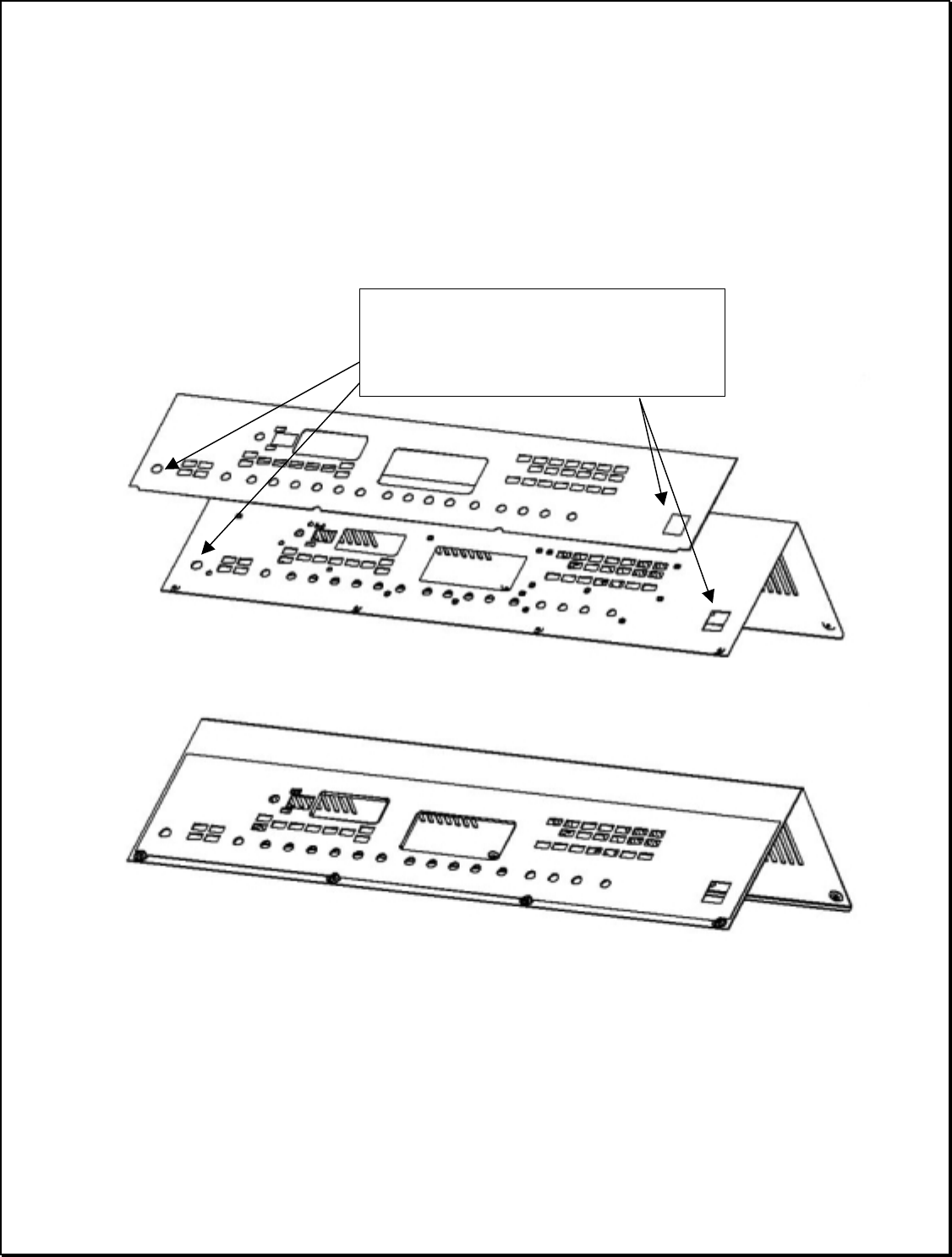

) cnd……Remove from the overlay (50-00-0108) the self-adhesive cover sheet and place
into the alignment fixture, adhesive side up. Position the overlay as indicated on the fixture.
Position the chassis cover over the alignment fixture, and orient so the alignment pins come
through the chassis cover. Before applying the cover onto the overlay ensure that the piece is
correctly oriented and not backwards. Bring the cover down onto the overlay, and apply
pressure. Remove the protecting film from the overlay.
USE GLOVES FROM THIS POINT
ON WHEN HANDLING THE COVER.
MAKE SURE THE ¼ INCH JACK
HOLES AND POWER SWITCH
HOLES ARE ALIGNED
