User Manual

CALMASTER DIGITAL CALIPER INSTRUCTIONS

Calmaster Digital Caliper

For more information visit www.baty.co.uk precision measuring instruments

Please carefully review these instructions to ensure proper and accurate use of your new Digital Caliper.

Precautions:

• Before using this Digital Caliper, clean the surface of the beam and sticker with a dry, clean cloth (or soaked with cleaning oil)

• Never apply voltage on any part of this Digital Caliper or engrave with an electro probe to avoid damaging the electronics

• Take out the battery if this Digital Caliper is to stay idle for an extended period of time

Functions:

• ON/OFF: Press <ON/OFF> button once to turn on. Press this button again to turn off

• Zero setting: Press <ZERO> function button

• Change measuring mode: Press <mm/in> function button

• Absolute/incremental: Press <ABS> button, to return to zero function, press this button again

Cleaning:

• Clean this Digital Caliper with a soft cloth

• DO NOT use any type of solvent

• DO NOT immerse this Digital Caliper in liquid

Specifications:

Measuring range: 4”/100mm, 6"/150mm, 8"/200mm, 12"/300mm

Resolution: 0.0005"/0.01mm

Accuracy: ±0.001"/±0.02mm (4"/100mm);

±0.001"/±0.02mm (6"/150mm);

±0.0012"/±0.03mm (8"/200mm);

±0.0016"/±0.03mm (12"/300mm)

Repeatability: 0.001"/0.01mm

Display: LCD (10.0mm high)

Battery: 3.0V CR2032 Lithium

Battery life: Approx 1 year

Measuring speed: 120"/3m per second

Working temperature: 0 - 40°

Relative humidity: <80%

Storage temperature: -10 – 60°C

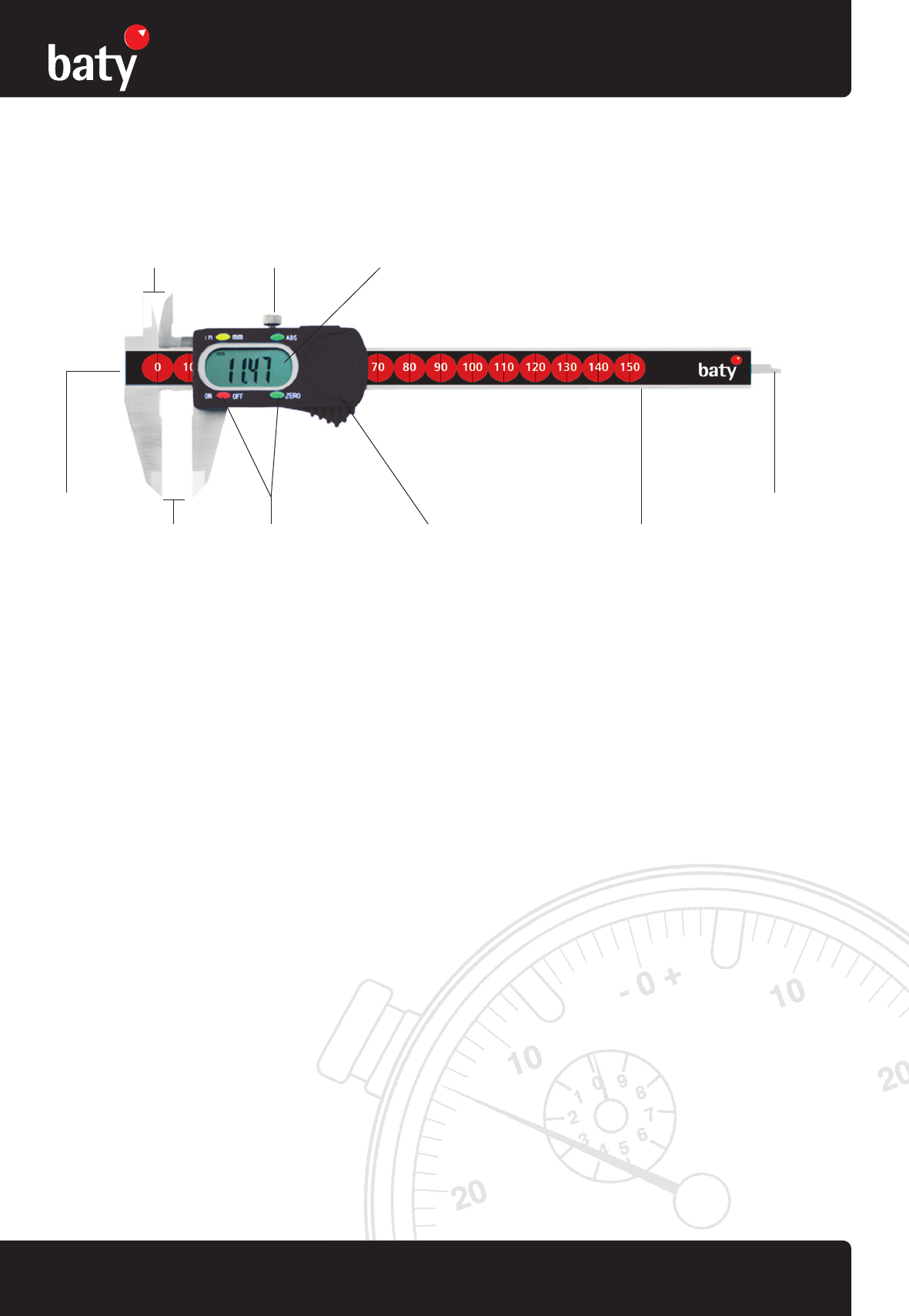

Internal jaws Locking screw Display

Depth

measuring

rod

BeamBattery coverFunction buttonsExternal jaws

Step

measuring

face

Calmaster Digital Caliper_baty 22/07/2010 14:04 Page 1

PAGE 1
Calmaster Digital Caliper_baty 22/07/2010 14:04 Page 1 CALMASTER DIGITAL CALIPER INSTRUCTIONS Calmaster Digital Caliper Please carefully review these instructions to ensure proper and accurate use of your new Digital Caliper.
PAGE 2
Calmaster Digital Caliper_baty 22/07/2010 14:04 Page 2 CALMASTER DIGITAL CALIPER INSTRUCTIONS Calmaster Digital Caliper Battery replacement: Once display begins flashing, slide off the battery cover and rubber gasket, then remove the battery by gently tapping the instrument in your hand. (Never try to force or pry the battery out). Insert the new battery with the positive pole “+“ facing upwards and replace the gasket and cover. Please dispose of used batteries at a proper collection centre.
