Specification Sheet

2A05
Combination Folded Paper Towel Dispenser/Waste Container
© 2015 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) [phone]
bradleycorp.com
Orders composed of products indicated as Bradex
®
will be available to ship in three days after receipt of
order at the factory. There is no pricing penalty for
this service from Bradley.
Page 1 of 2 12/19/2012
This information is subject to change without notice.
Bradley_CombiDispenser_2A05

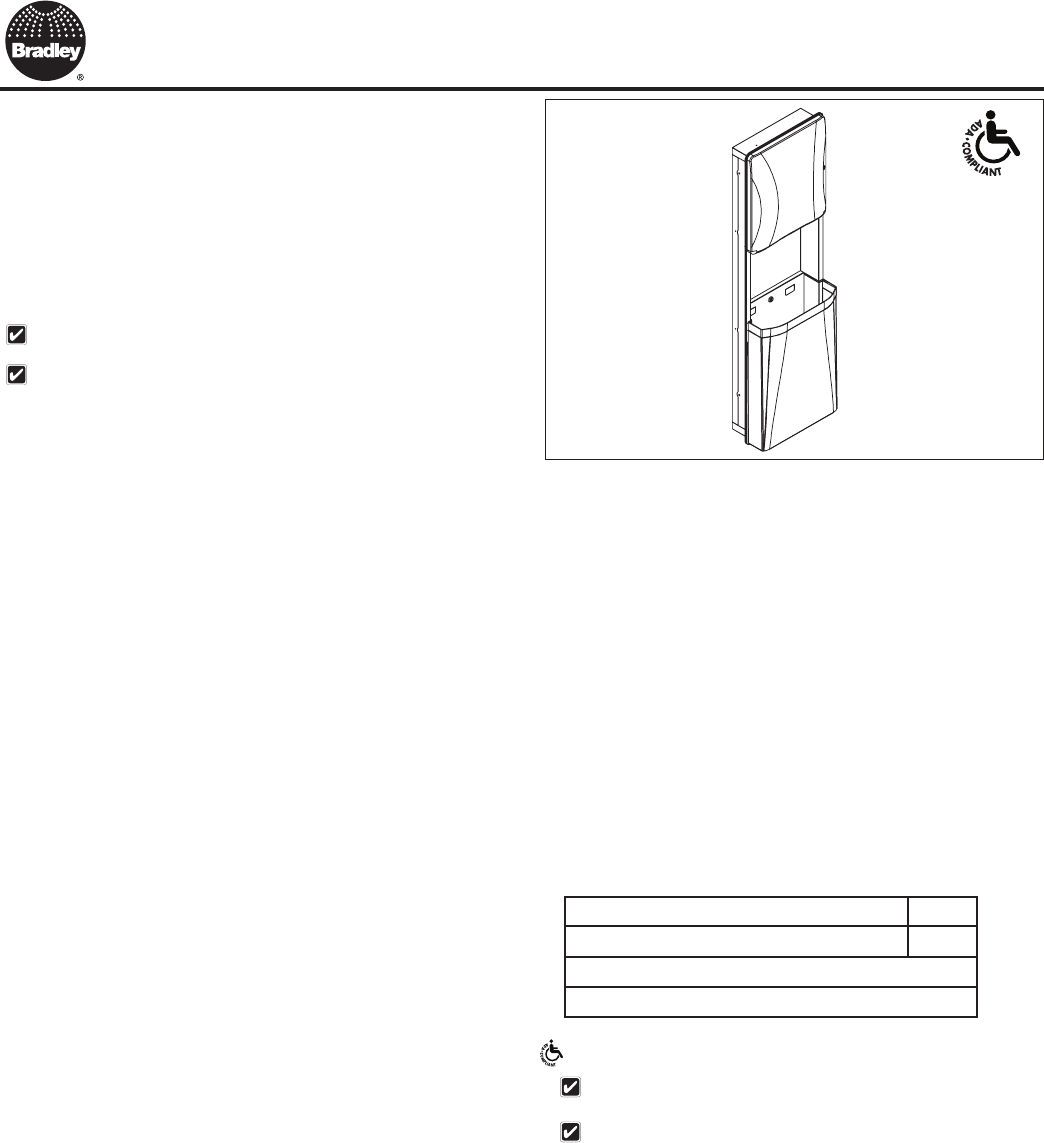

Model 2A05 — Recessed Bradex
®
(recesses 3-13/16"; projects 4-7/8")
Model 2A05-10 — Semi-Recessed
(recesses 2"; projects 6
11
⁄16")
Model 2A05-11 — Surface-Mounted
(projects 8
11
⁄16")
Diplomat Series
Folded Paper Towels
Product Materials
CABINET: 0.030-inch/22-ga. (0.76 mm) stainless steel with exposed surfaces
in architectural satin finish. Welded construction with seamless corners and
burr-free edges.
FLANGE: 0.030-inch/22-ga. (0.76 mm) stainless steel with exposed surfaces
in architectural satin finish. One piece seamless construction, 1" wide with ¼"
return.
DOORS: 0.036-inch/20-ga. (0.92 mm) stainless steel with full length piano
hinge and tumbler lock keyed like other Bradley units. Front of door has
matching curvature to other Bradley Diplomat washroom accessories.
TOWEL DISPENSER: 0.030-inch/22-ga. (0.76 mm) stainless steel with
exposed surfaces in architectural satin finish. Rolled edge on towel dispenser
opening.
WASTE CONTAINER: 0.036-inch/20-ga. (0.92 mm) stainless steel with
exposed surfaces in architectural satin finish. All welded construction. Secured
to cabinet with tumbler lock keyed like other Bradley units. Front of cabinet has
matching curvature to other Bradley Diplomat washroom accessories.
Capacity
Towel Dispenser — 800 multi fold or 600 C-fold paper towels.
Waste Container — 12 gal. (1.6 cu. ft.)
Operation
Towel dispenser holds multi-fold or C-fold towels without use of special
adapter. Receptacle removable for servicing by unlocking waste container.
Operates with less than 5 lbs. of force.
Installation
Verify all rough-in dimensions prior to installation. Recessed unit requires
rough wall opening 15
3
⁄4"W x 54
1
⁄2"H x 4"D (Semi-recessed unit only 2" deep).
Secure to framing with mounting screws (not included) at holes provided.
Shim at screw points as required. Surface mounted units must have holes
drilled by installer.
Optional:
ADA Compliant
Consult local and national accessibility codes for proper installation
guidelines.
Conformity and compliance to local and national codes is the responsibility
of the installer.
For information on Warranties, Maintenance and BAA/ARRA
Compliance, visit our web site at:
bradleycorp.com/products/accessories/.
Guide Specification
Folded paper towel dispenser and [12 gal. /1.6 cu. ft.] [18 gal. /2.5 cu. ft.]
capacity waste receptacle in [recessed] [semi-recessed] [surface-mounted]
wall cabinet. Towel dispenser door and waste receptacle faces formed with
contemporary contours, radii, and finish matching related accessories in
manufacturer's designer series. Towel dispenser capacity 800 multi-fold
or 600 C-fold paper towels, accessed with hinged service door with keyed
tumbler lock. Dispenses using less than 5 lbs. of force. Waste receptacle
removable from cabinet with keyed tumbler lock. Universal keying. Formed
from stainless steel sheet with satin finish on exposed surfaces, fully
welded, with seamless corners and burr-free edges: cabinet and flange
0.030-inch/22-ga. thick; door and waste receptacle 0.036-inch/20-ga. thick.
Overall dimensions: 17
1
⁄8"W x 56"H x 8
11
⁄16"D.
Recessed
Model Shown
Feature Suffix
 Large Capacity Waste Container: 18 gal.
-36
 12 Gallon Vinyl Liner Part #P11-044
 18 Gallon Vinyl Liner Part #P11-041
MasterFormat Title: Commercial Toilet Accessories
MasterFormat Number: 10 28 13.13
OmniClass Title: Toilet and Bath Specialties
OmniClass Code: 23.31.25.00
