Specification Sheet

5424
Toilet Tissue Dispenser
© 2014 Bradley
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) [phone]
bradleycorp.com
Orders composed of products indicated as Bradex
®
will be available to ship in three days after receipt of
order at the factory. There is no pricing penalty for
this service from Bradley.
Page 1 of 1 5/11/2011
This information is subject to change without notice.
Bradley_TPDispenser_5424

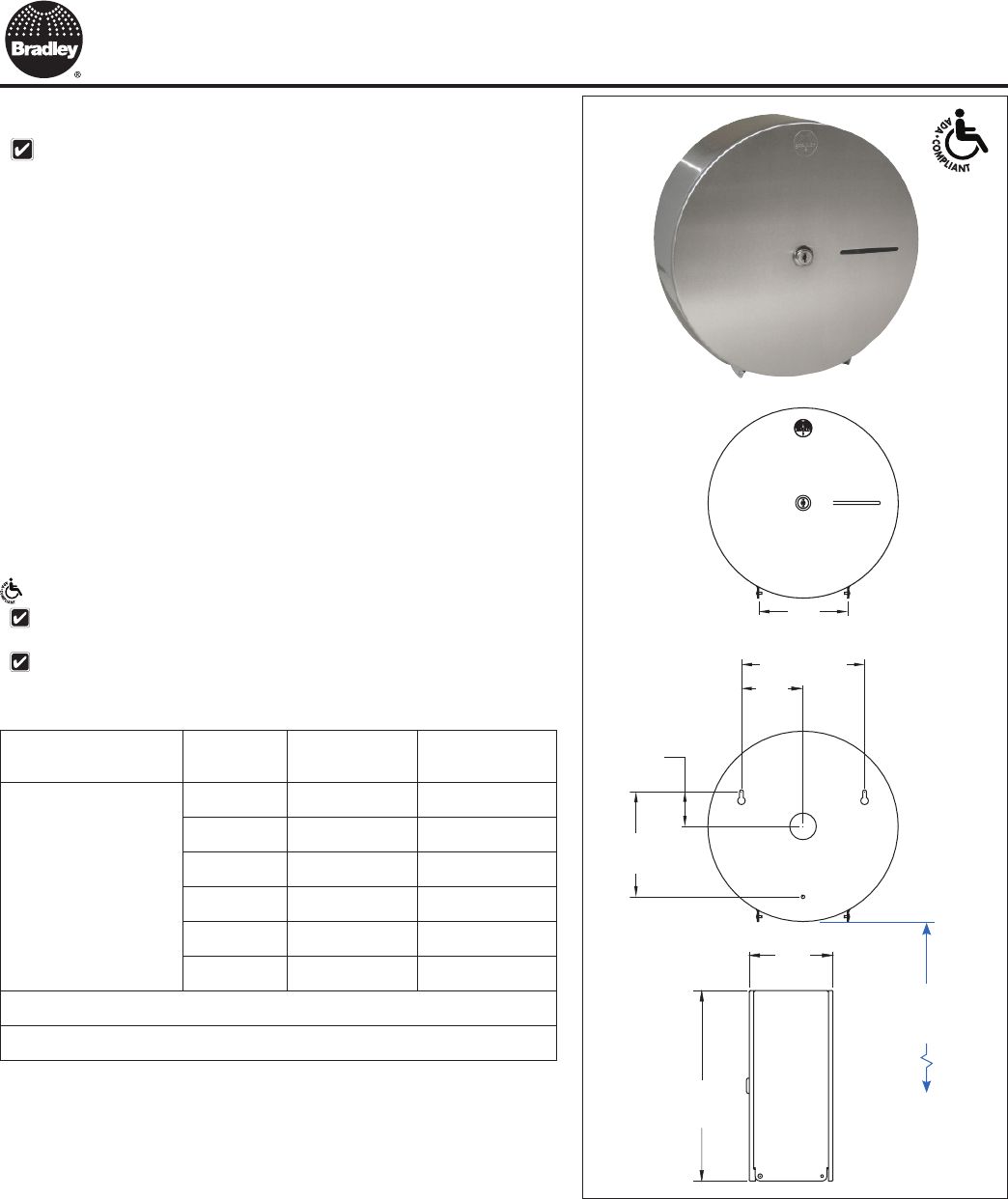

Model 5424 — Surface-Mounted Bradex
®
Jumbo Roll
Product Materials
CABINET & MOUNTING PLATE: satin finish stainless steel.
DOOR: satin finish stainless steel. Drawn one-piece construction. Furnished with
tumbler lock and refill-indicator viewing slots.
Operation
Cabinet holds one roll (up to 10" diameter) of 1½", 2
1
⁄8" or 3" diameter core toilet
tissue (by using core adapters, p/n P10-707). Refill indicator slot reveals tissue
level. Tumbler-locked door swings down to replenish tissue roll.
Installation
Verify all rough-in dimensions prior to installation. Secure unit to wall or toilet
partition with three screws (included) through mounting holes.
Guide Specification
Jumbo roll toilet tissue dispenser shall be satin finish stainless steel. Unit shall
dispense one 10" diameter toilet tissue roll with 1½", 2
1
⁄8" or 3" diameter core. Door
shall be secured with a tumbler lock and shall have a refill indicator viewing slot.
Dim. "A" Key Surface:
For Dim. "A"
Top of Rough
Wall Opening
Bottom of Rough
Wall Opening
Bottom of toilet paper
opening to finished floor
20" (508mm)
30¹³⁄₁₆" (783mm)
20" (508mm)
19" (483mm)
29¹³⁄₁₆" (758mm)
19" (483mm)
18" (457mm)
28¹³⁄₁₆" (732mm)
18" (457mm)
17" (432mm)
27¹³⁄₁₆" (707mm)
17" (432mm)
16" (406mm)
26¹³⁄₁₆" (681mm)
16" (406mm)
15" (381mm)
25¹³⁄₁₆" (656mm)
15" (381mm)
Rough wall opening:
Surface Mount: No rough opening, see overall dimensions
Dim. "A"
to finished
floor
6"
(152mm)
5"
(127mm)
10¹³⁄₁₆"
(275mm)
3½"
(89mm)
2"
(51mm)
7" (178mm)
4¾"
(121mm)
ADA Compliant
Consult local and national accessibility codes for proper
installation guidelines.
Conformity and compliance to local and national codes is
the responsibility of the installer.
