Installation Guide

ManualsBrandsBradley ManualsEmergency & Safety EquipmentBradley Free Standing Barrier Free All Stainless Steel Drench Shower with Pull Rod Activation

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817

bradleycorp.com

Installation

215-1417BFSS Rev. F; ECN 12-05-016A

Page 1 of 5 5/25/2012

S19-110BFSS

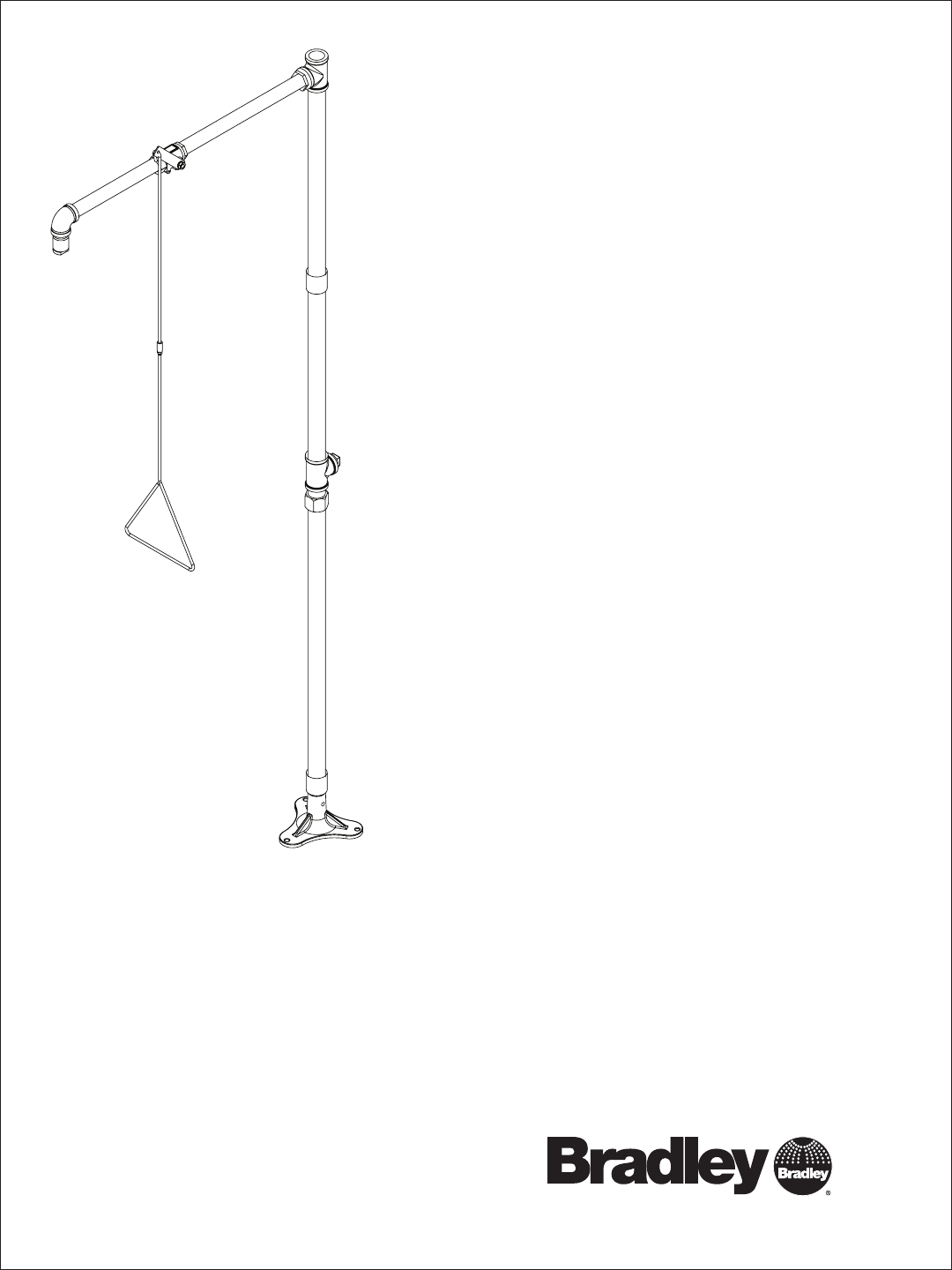

Freestanding Drench Shower

Table of Contents

Pre-Installation Information .............. 2

Installation Instructions.................. 3

Assembly of Components ............... 4

Parts List ............................ 5

Summary of content (5 pages)

PAGE 1
Installation S19-110BFSS Freestanding Drench Shower Table of Contents Pre-Installation Information . . . . . . . . . . . . . . Installation Instructions . . . . . . . . . . . . . . . . . Assembly of Components . . . . . . . . . . . . . . . Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215-1417BFSS Rev. F; ECN 12-05-016A © 2012 Bradley Page 1 of 5 5/25/2012 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 bradleycorp.
PAGE 2
S19-110BFSS Installation IMPORTANT Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department. Compliance and conformity to drain requirements and other local codes and ordinances is the responsibilityof the installer. Installation Packing List IS TH SIDE UP • • • • Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material.
PAGE 3
S19-110BFSS Installation Installation Supplies Required: • (3) 3⁄8" floor anchors and bolts • Pipe sealant • Piping to 1¼" NPT water supply inlet on unit • Adequate supply pipe supports • Min. 4" drain to accommodate 30 gallons per minute discharge for shower waste • OPTIONAL: sign-mounting hardware 343⁄8" (873mm) 3¾" (95mm) 1½" (38mm) Step 1: Secure base to floor 45" (1142mm) 1. Install three suitable anchors (supplied by installer) for 3⁄8" bolts in the floor. 2.
PAGE 4
S19-110BFSS Installation Assembly of Components 8 5 9 11 12 12.1 10 12.2 14 1¼" NPT Supply Inlet NOTE: If tee (upper Item 5) is used as the supply inlet, then relocate coupling (Item 4) to this location. 7 12.11 15 2 16 6 13 5 ALIGN HANDLE PIECES AS SHOWN 1¼" NPT Supply Inlet 4 17 114-050 P.O. BOX 309, MENOMONEE FALLS, WI 53052-0309 USA TEL: 1-800-BRADLEY FAX: (262-251-5817) http://www.bradleycorp.com 3 R P.O.
PAGE 5
S19-110BFSS Installation Parts List Item Part No. 1 131-062 2 3 Qty. Description Item Part No. Qty. Description 1 Base 12.1 S27-276 1 Ball Valve 1" with Jam Nut 269-1048 2 Coupling 12.11 161-079 1 Jam Nut only 113-1182 1 Pipe, Stainless Steel 1¼" NPT x 32" 12.
