Assembly Instructions

EC4

MOBILE COMPUTER WORKSTATION

Qty Part# Description

2 010-1863 Top & Bottom Shelves

1 010-4511 Slide Out Shelf

1 010-4512 Slide Out Shelf w/Cut Out

4 010-4505 Shelf Support Brackets

1 022-1397 Right Front Leg

1 022-1398 Left Front Leg

1 022-1399 Right Rear Leg

1 022-1400 Left Rear leg

2 015-0002 4" Casters w/o Lock

2 015-0003 4" Casters w/ Lock

1 030-1191 14" Full Extension Slide

PARTS LIST HARDWARE LIST

Lay the front legs on a carpeted surface (they are stamped "LF" and "RF") with the holes

facing up and the bracket facing up and in as shown in Figure 1. Slide the top and bottom

shelves onto the legs so that the brackets are inside the shelves (Figure 2).

STEP 1

TOOLS REQUIRED

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

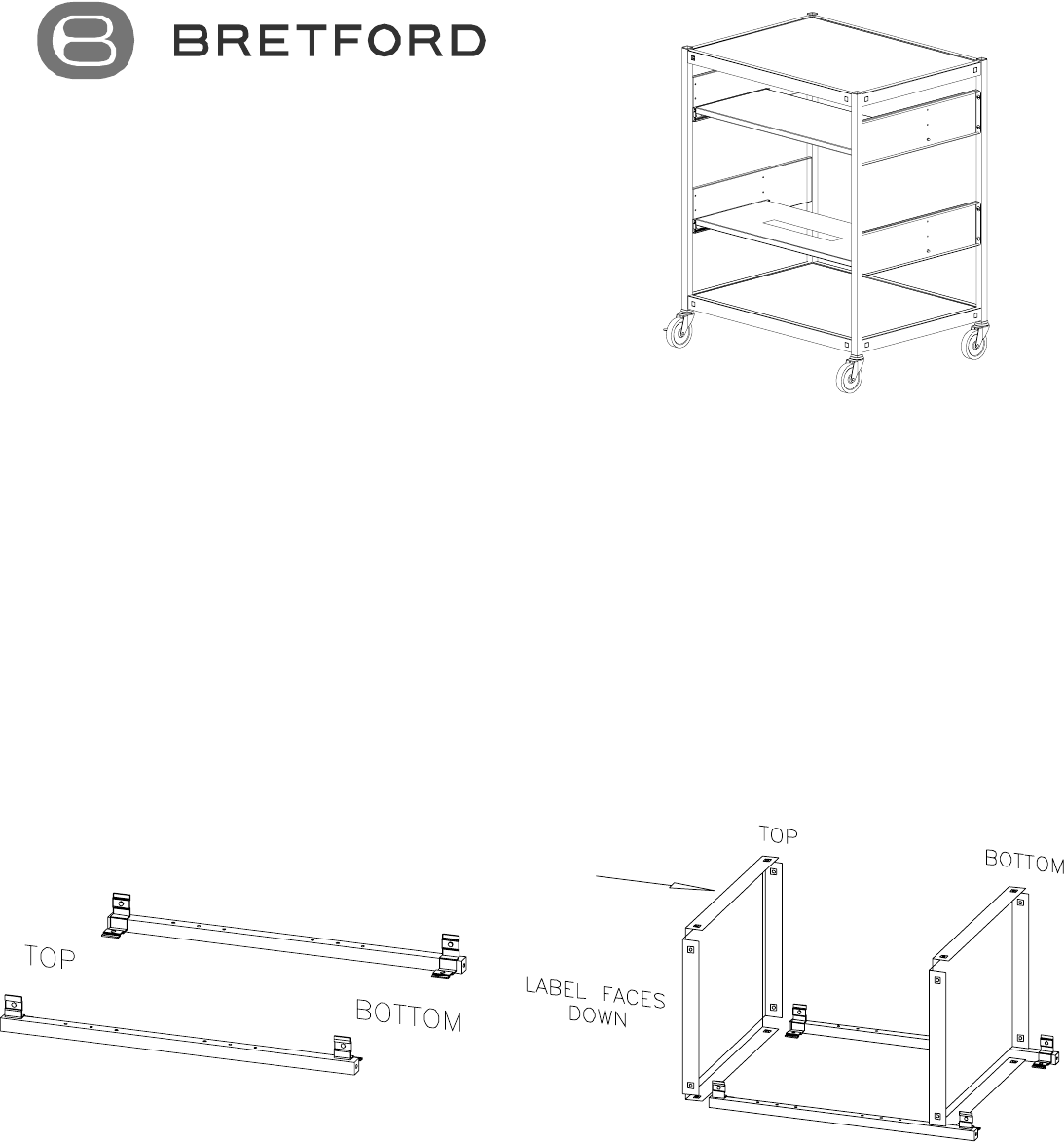

FIGURE 1

FIGURE 2



Ref Qty Part# Description

AA 16 030-0300-21T 5/8" Square Head Bolts

BB 16 030-0002 5/16-18 Hex Serrated Nuts

CC 16 030-0304 1/4-20 x 5/8" Combo Screws

DD 16 030-1228 8-32 x 1/4" Combo Truss Screws

EE 8 030-1203 #8-32 Acorn Nuts

FF 8 02236 8-32 Flange Whiz Lock Nuts

1 010-1106 Hex Wrench

Summary of content (4 pages)

PAGE 1
 EC4 MOBILE COMPUTER WORKSTATION Assembly Instructions PARTS LIST Qty 2 1 1 4 1 1 1 1 2 2 1 Part# 010-1863 010-4511 010-4512 010-4505 022-1397 022-1398 022-1399 022-1400 015-0002 015-0003 030-1191 Description Top & Bottom Shelves Slide Out Shelf Slide Out Shelf w/Cut Out Shelf Support Brackets Right Front Leg Left Front Leg Right Rear Leg Left Rear leg 4" Casters w/o Lock 4" Casters w/ Lock 14" Full Extension Slide HARDWARE LIST Ref AA BB CC DD EE FF Qty 16 16 16 16 8 8 1 Part# 030-0300-21T 030-0002
PAGE 2
STEP 2 Slide the rear legs onto the shelves so that the brackets are inside the shelves. STEP 3 STEP 4 Secure shelves and legs together with bolts (AA) and nuts (BB) in each corner as shown. AA BB Insert each caster into the bottom of each leg. If caster does not insert easily, use a rubber mallet to tap caster in place. Once casters are SECURELY in place, stand unit upright.
PAGE 3
SHELF SUPPORT BRACKET FIGURE 3 These holes need to face the edge you want the shelf to slide out on. CC FIGURE 4 EE DD To access the correct holes, slide inner piece out slightly. Attach rear screw & nut FIRST. FIGURE 5 STEP 5 Determine which side you want your shelf to pull out from. Use FIGURE 3 as reference. Attach the shelf support brackets to both set of holes between the legs with screws (CC) as shown in FIGURE 4.
PAGE 4
FF FIGURE 6 DD FIGURE 7 STEP 6 Attach the remaining slide pieces to the pull out shelves with screws (DD) and nuts (FF) as shown in FIGURE 6. Then slide each shelf into the cart as shown in FIGURE 7. FF Bretford 11000 Seymour Avenue Franklin Park, IL 60131 TEL: 847.678.2545 800.521.9614 FAX: 847.678.0852 800.343.1779 Bretford Ltd. Technology House 7 Lake End Court, Taplow Bucks SL6 0JQ England TEL: 01628 603558 FAX: 01628 604923 www.bretford.com Part #031-1099 Rev. 05.17.
