Specification

SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

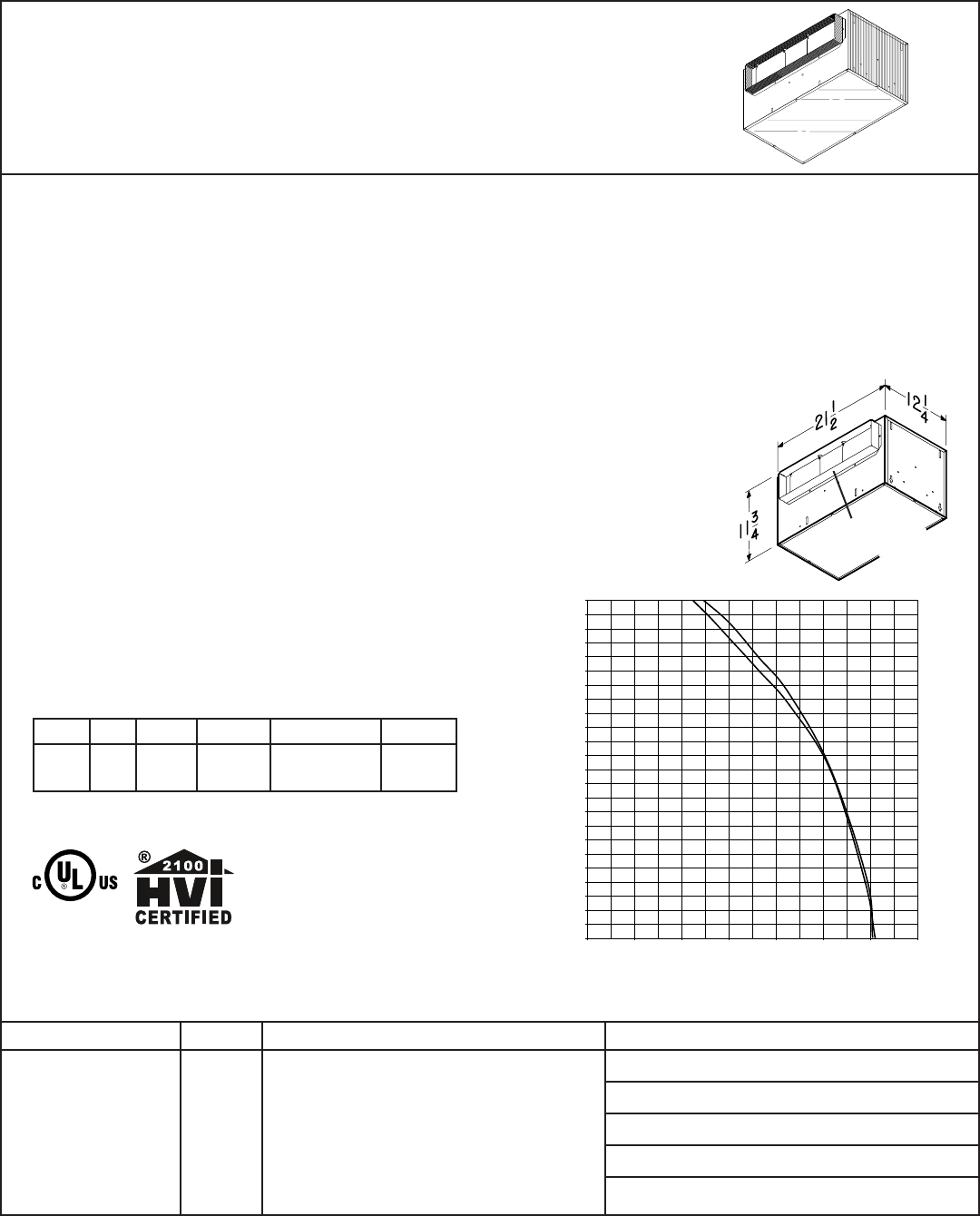

HLB6
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
0 100 200 300 400 500 600 700
AIR FLOW RATE (CFM)
STATIC PRESSURE (IN-WG)
VERTICAL
HORIZONTAL
Powerful yet quiet blower - exhausts the cooking area
from a remote location.
FEATURES
BLOWER:
• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, galvanized steel, centrifugal
blower wheels for quiet, efficient performance
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation
HOUSING:
• Rugged galvanized steel
• 8-position mounting brackets for easy installation
and greater adaptability to various mounting
requirements
• Automatic backdraft damper located within exhaust
duct connector
• Factory-shipped in horizontal discharge position
• May be converted to vertical discharge
• Suitable for kitchen installations
ACCESSORIES INCLUDED:
• 4½-inch x 18½-inch integrated duct connectors
• Two (2) 4½-inch x 18½-inch to 10-inch-round transitions
• Hanger kit - for additional installation flexibility
TYPICAL SPECIFICATION
In-Line Blower shall be Model HLB6.
Unit shall have galvanized steel housing. Housing to have
adjustable mounting brackets.
Blower to include hanger kit, two (2) 4½-inch x 18½-inch to
10-inch-round transitions, and 4½-inch x 18½-inch integrated
duct connectors.
Automatic backdraft damper to be located within exhaust duct
connector. Duct connectors, blower assembly and wiring plate
shall be adjustable for either horizontal or vertical installation.
Blower unit shall be removable
from housing and will have
galvanized steel, centrifugal-
type blower wheels. Motor to
be permanently lubricated and
mounted with resilient anti-
vibration mounts.
Air delivery shall be no less
than listed. All air ratings shall
be certified by HVI. Unit to be
UL and cUL listed.
70E 99043707C
IN-LINE BLOWER
MODEL HLB6
For use with Broan Elite and NuTone Premier Hoods.
* Performance ratings include the addition of a 10” round
transition on inlet and outlet.
SPECIFICATIONS
Volts Hz Amps CFM Duct Weight
120 60 2.9 600 (V) 4½” x 18½” * 45.2 lbs.
600 (H)
HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are available
to consumers. Product performance is rated
at 0.1 in. static pressure, based on tests
conducted in a state-of-the-art test laboratory.
Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
4½” x 18½”
DUCT CONNECTOR
