Rack mount instructions
4
Brocade Mobility RFS4000 Controller Installation Guide 19
53-1001933-02
NOTE
The controller supports USB flash devices formatted with FAT or VFAT (FAT32)
filesystems only. If your flash storage device is formatted with another filesystem you
will need to format
Rack mount instructions
To install the Brocade Mobility RFS4000 Controller in a rack:
1. Attach the controller to the 1U rack mount kit (Part Number
RFS-4010-MTKT1U-WR) using the guides provided.
2. Place the power supply unit in the rack mount tray in the space provided.

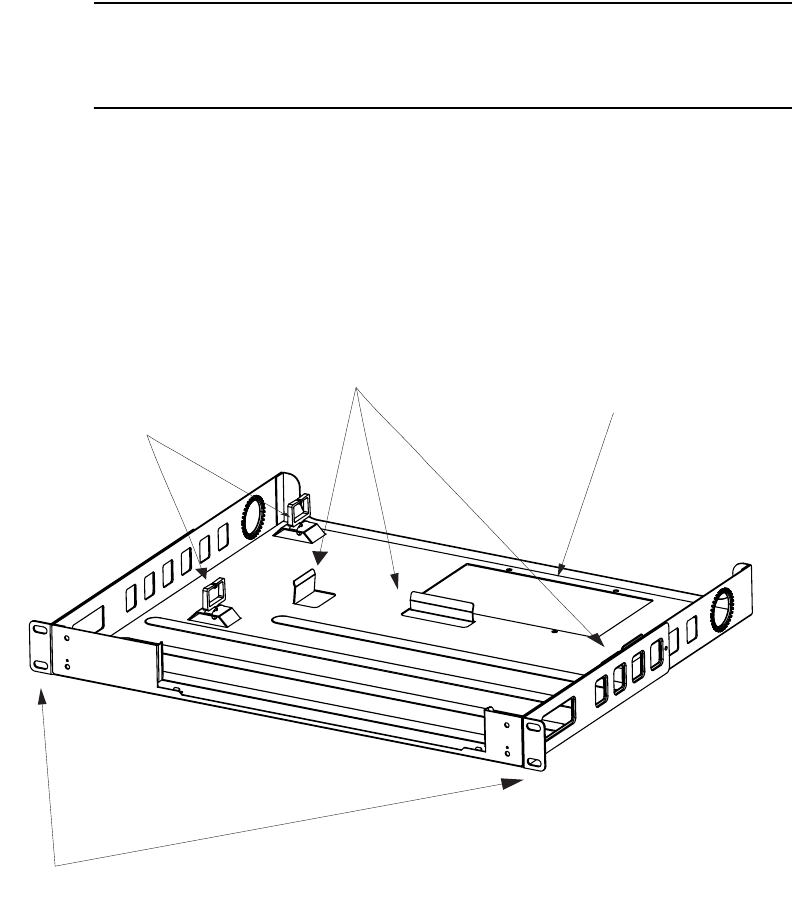

Attach to Rack
1U Rack Mount Kit
Back
Switch
Guides
Front
Power Supply Guide
Cable
Management
