Mobility 1220 Access Point external antenna model antenna options
2
22 Brocade Mobility 1220 Access Point Installation Guide
53-1002916-01

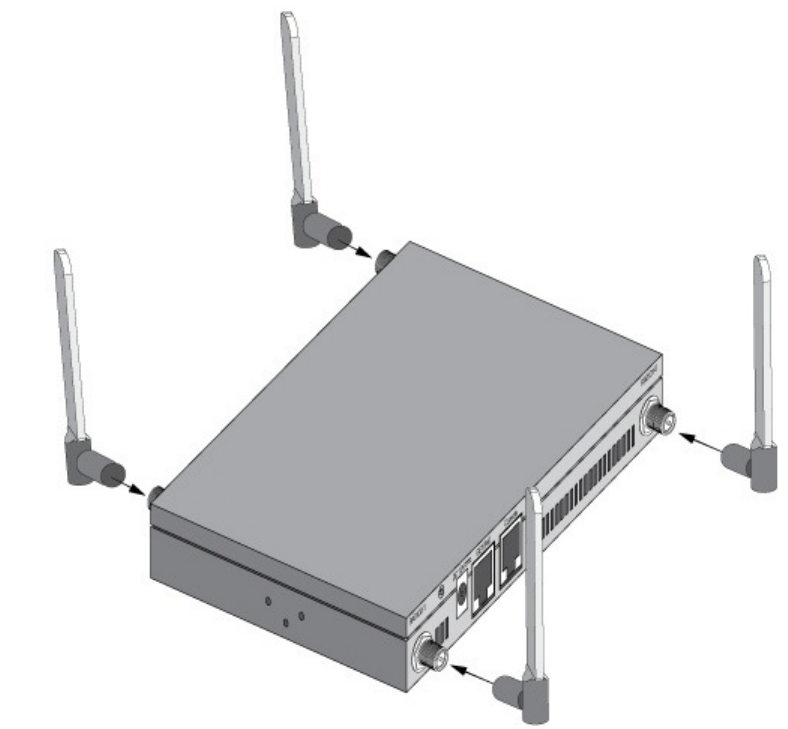

Mobility 1220 Access Point external antenna model
antenna options
Brocade supports two antenna suites for Mobility 1220 External Antenna models.
One antenna suite supporting the 2.4 GHz band and another antenna suite
supporting the 5 GHz band. Select an antenna model best suited to the intended
operational environment of your access point.
