Initial Access Point Configuration
3
Brocade Mobility 1220 Access Point Installation Guide 47
53-1002916-01

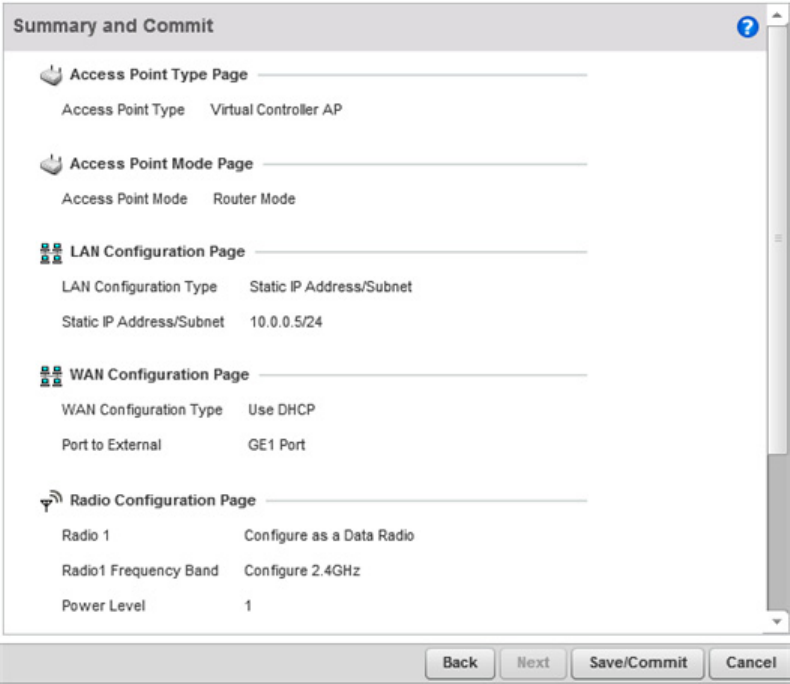

If a screen shows settings not intended as part of the initial configuration, the
screen can be selected from within the Navigation Panel and its settings
modified accordingly.
33. If the configuration displays as intended, select the Save/Commit button to
implement these settings to the Access Point’s configuration. If additional
changes are warranted based on the summary, either select the target page
from the Navigational Panel, or use the Back and Next buttons to scroll to the
target screen.
