88 Brocade Virtual ADX Graphical User Interface Guide
53-1003242-01
Server groups
7
Binding a server group
To bind a server group with a virtual server port on the Brocade Virtual ADX, perform the following
steps within the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Server Groups.
The Server Groups page is displayed.
3. Select a server group entry from the list in the Server Group page and click Bind.

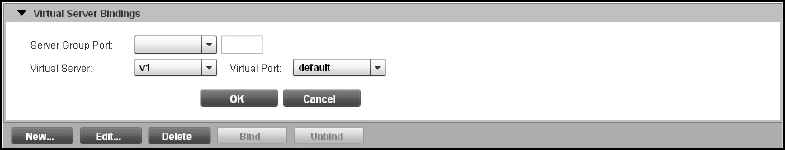

The Virtual Server Bindings page is displayed, as shown in Figure 73.
FIGURE 73 Binding server groups
4. Provide the following information:
• Server Group Port: Select the port of the server group to bind with the virtual server port.
• Virtual Server: Select the virtual server that you want to bind to the server group.
• Virtual Port: Select the virtual server port to which you want to bind the server group port.
5. Click OK to bind the virtual server to the real server groups.
For more information on binding virtual servers to the server group, refer to the Brocade Virtual
ADX Server Load Balancing Guide.
