Brocade Virtual ADX Graphical User Interface Guide 89
53-1003242-01
Source NAT IPs
7
Source NAT IPs
You can define source IP addresses on a Brocade Virtual ADX system running switch code to place
it in a multi-netted environment. These source IP addresses can potentially be used as default
gateways for real servers. You can also define source NAT IP addresses while using source NAT.
To add a source NAT IP addresses to the Brocade Virtual ADX, perform the following steps within
the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Source NAT IPs.
The Summary tab is displayed. See Figure 74.

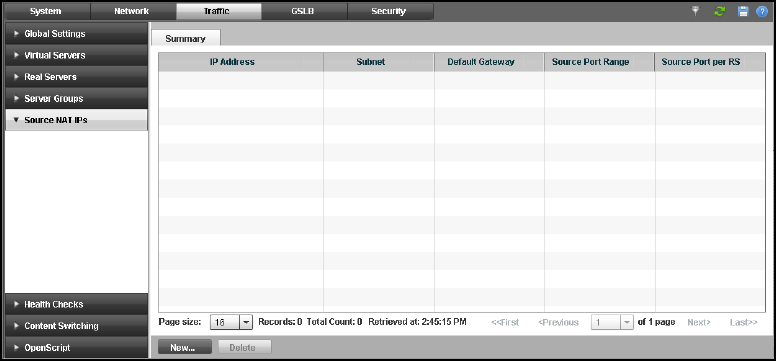

FIGURE 74 Source NAT IPs summary tab
The Summary page displays the list of configured source NAT IP address. Each entry in the list
includes the subnet mask, gateway, source port range, and source port per real server.
