Health checks
7

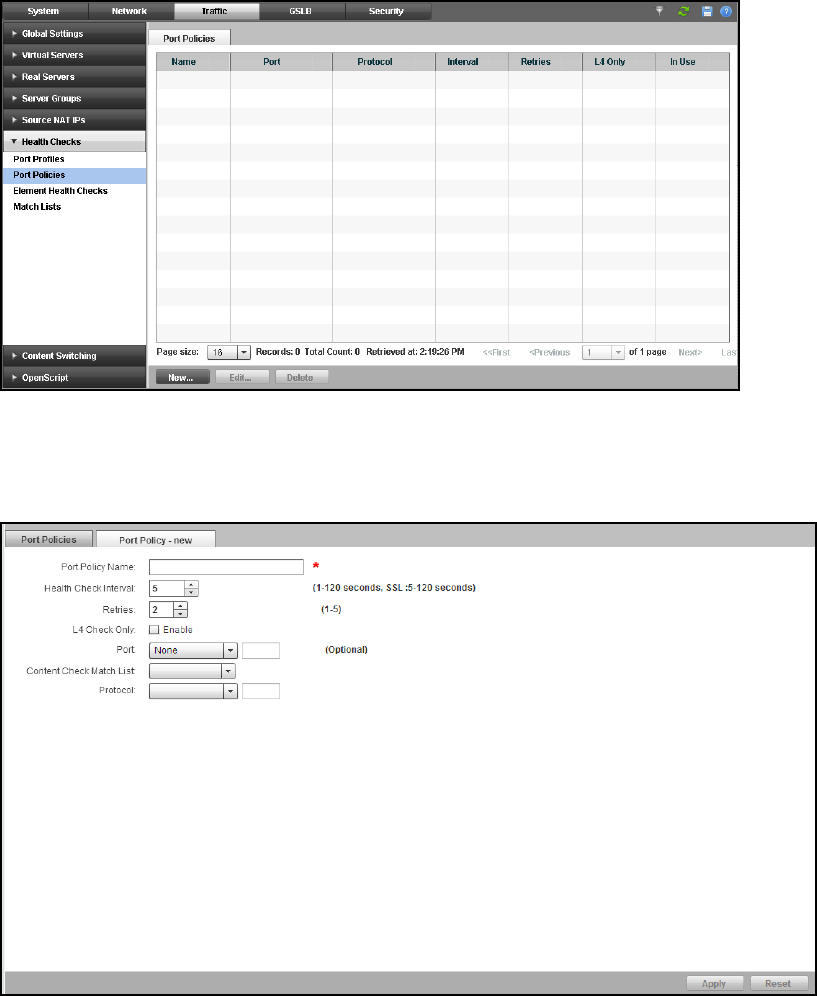

The Port Policies page is displayed, as shown in Figure 80.
FIGURE 80 Port policies
3. Click New at the bottom of the Port Policies page.
The Port Policy – new page is displayed, as shown in Figure 81.
FIGURE 81 Configuring port policies
4. Provide the following information:
• Port Policy Name: Enter the name of the port policy.
• Health Check Interval: Enter the health check interval in seconds. The range is from 1
through 120 seconds. For SSL, the range is from 5 to 120. The default is 5 seconds.
