Health checks
7
5. Click Apply to save your entries.
Click Reset to revert the configuration to the previous configured values.
To modify the configured boolean health checks, in the summary table, select an entry and
click Edit or double-click the entry. You can also delete a configuration by clicking Delete.
However, you cannot edit or delete the boolean health check policies if they are in use.
For more information on configuring boolean health checks, refer to the Brocade Virtual ADX
Server Load Balancing Guide.
Viewing match list policies
To view match list policies on the Brocade Virtual ADX, perform the following steps within the
Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Health Checks, and then select Match Lists.
The Match Lists page is displayed, as shown in Figure 85.

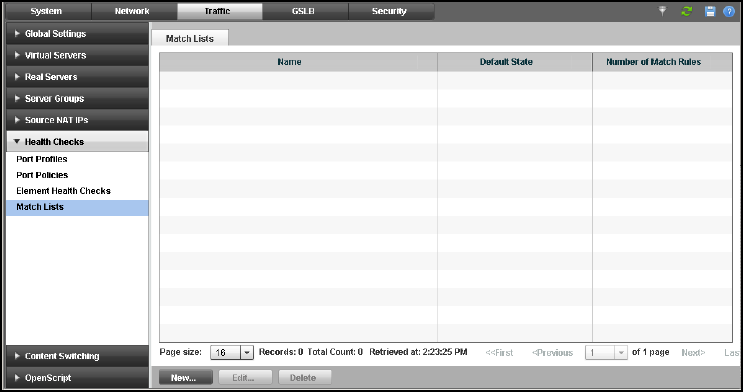

FIGURE 85 Match lists summary
3. Review the following information on the Match Lists page:
• Name
• Default State
• Number of Match Rules
