Content switching
7
Request rules
You can create request rules for the Brocade Virtual ADX to process incoming traffic. To view the list
of Layer 7 request rules for incoming traffic on the Brocade Virtual ADX, perform the following steps
within the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Content Switching, and then select Request Rules.
The Request Rules page is displayed, as shown in Figure 88.

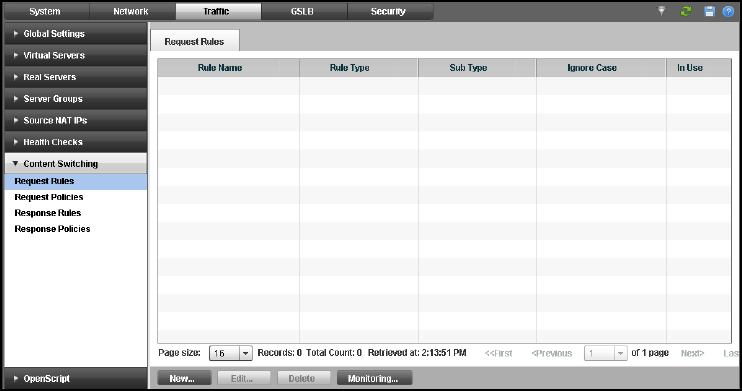

FIGURE 88 Request rules summary
The Request Rules page displays the list of the configured request rules for incoming traffic.
Creating request rules
A request rule specifies the content that the Brocade Virtual ADX looks for in the incoming traffic.
To create a Layer 7 request rule for incoming traffic on the Brocade Virtual ADX, perform the
following steps within the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Content Switching, and then select Request Rules.
The Request Rules page is displayed, as shown in Figure 88.
The Request Rules page displays the list of the configured request rules for incoming traffic.
