Content switching
7
• Select the Log check box to write a message to system log when the specified rule is
matched, and specify the log format.
• Click Add to create a rule-action list.
The rule-actions list is displayed in the table. Select a rule in the table and click Remove to
delete the rule and the action from the list. Click the UP or DOWN button to arrange the
rule-action list in desired order.
5. Click Apply to save your entries.
Click Reset to revert the configuration to the previous configured values.
For information on binding request policies, refer to “Binding request policies”.
Response policies
You can associate content switching rules to a response policy that defines how the Brocade Virtual
ADX process the outgoing traffic.
To view the list of Layer 7 response policies for outgoing traffic on the Brocade Virtual ADX, perform
the following steps within the Configure tab:
1. Click Traffic on the menu bar.
2. From the sidebar, select Content Switching, and then select Response Policies.

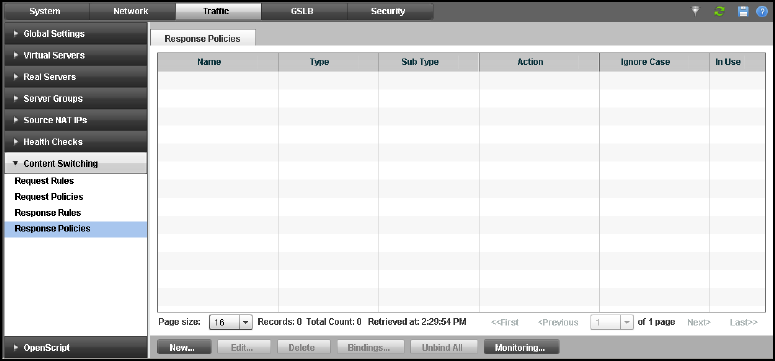

The Response Policies page is displayed, as shown in Figure 94.
FIGURE 94 Response policies summary
