OpenScript
7
The page is displayed, as shown in Figure 97.

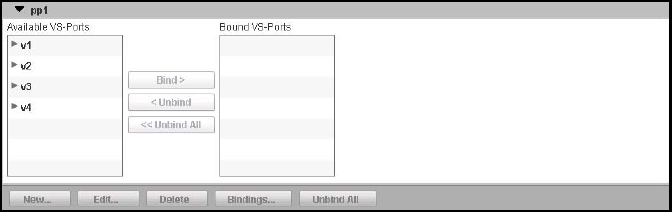

FIGURE 97 Binding response policies
4. Select the virtual servers to bind with the request policy from the Available VS-Ports list and
click Bind to move them to the Bound VS-Ports list.
To unbind the VIPs or ports, select the ports you want to unbind from the Bound VS-Ports list
and click Unbind. To unbind all the ports, click Unbind All.
For more information on binding content switching policies, refer to the Brocade Virtual ADX Server
Load Balancing Guide.
OpenScript
OpenScript provides a Perl-based scripting environment to create event-driven configurations that
can adapt to a real-time network environment. The OpenScript environment allows you to create
new configurations using Perl scripts to obtain traffic information from the Brocade Virtual ADX,
and make changes to the Brocade Virtual ADX and then respond through changes in operation.
Viewing scripts
To view all scripts on the Brocade Virtual ADX, perform the following steps within the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select OpenScripts.
