126 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

OpenScript

The Configure Scripts page is displayed, as shown in Figure 98.

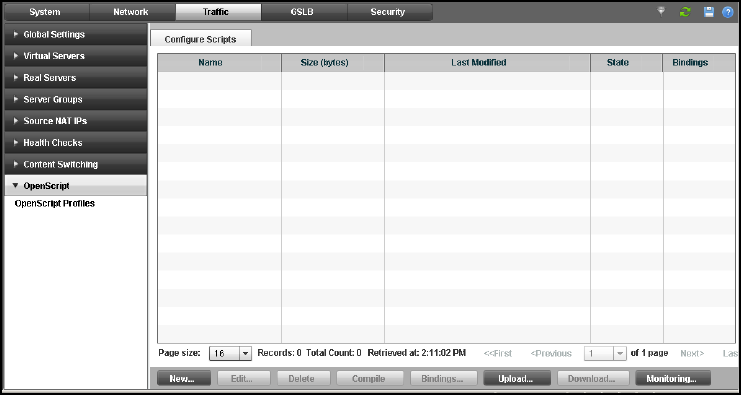

FIGURE 98 Configure Scripts

Creating scripts

To create an OpenScript on the Brocade Virtual ADX, perform the following steps within the

Configure tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select OpenScripts.

The Configure Scripts page is displayed, as shown in Figure 98.

3. Click New at the bottom of the Configure Scripts page.

The Script Details - new page, as described in Step 4, is displayed.
