Access Control Lists

Configuring IPv6-based ACLs

The device supports IPv6-based ACLs. You can configure an IPv6 ACL on a global basis and then

apply to the incoming IPv6 packets on specified interface.

To configure an ACL for IPv6 on the device, perform the following steps within the Configure tab.

1. Click Security on the menu bar.

2. From the sidebar, select ACL.

3. Click New IPv6 ACL at the bottom of the ACL Summary page.

The ACL IPv6 - new page is displayed, as shown in Figure 126.

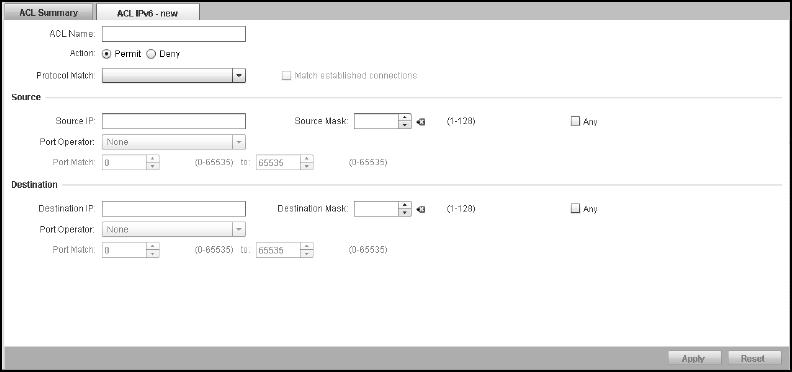

FIGURE 126 Configuring IPv6-based ACL

4. Provide the following information:

• ACL Name: Enter the name of the ACL.

• Action: Click one of the following options:

• Permit — Permits the packets that matches the ACL policy.

• Deny — Denies the packets that matches the ACL policy.

• Protocol Match: Select the protocol from the list to provide the type of IP packet you are

filtering.

• Match established connections: Select the check box to enable the policy only to the

established TCP connections, not to new sessions.
