TACACS Servers
9
Use the TACACS Servers tab to:
• Click New to open the TACACS Servers - new tab and create a new TACACS server.
• Select an entry and click Edit to edit the selected server’s settings.
• Select an entry and click Delete to delete the server from the table. You are prompted to
confirm this deletion. Click OK to confirm or Cancel to cancel the deletion.
Adding or editing a TACACS server
To add or editing a TACACS server, perform the following steps:
1. Select the Configure tab.
2. Click Security in the tab menu bar.
3. From the sidebar, select TACACS.
4. At the bottom of the Settings tab, click Servers.
5. At the bottom of the Servers tab, perform either of the following:
• To create a new server, click New.
NOTE
If there are already 8 servers listed, then the New button will be dimmed and not available.
• To edit an existing server, click Edit.

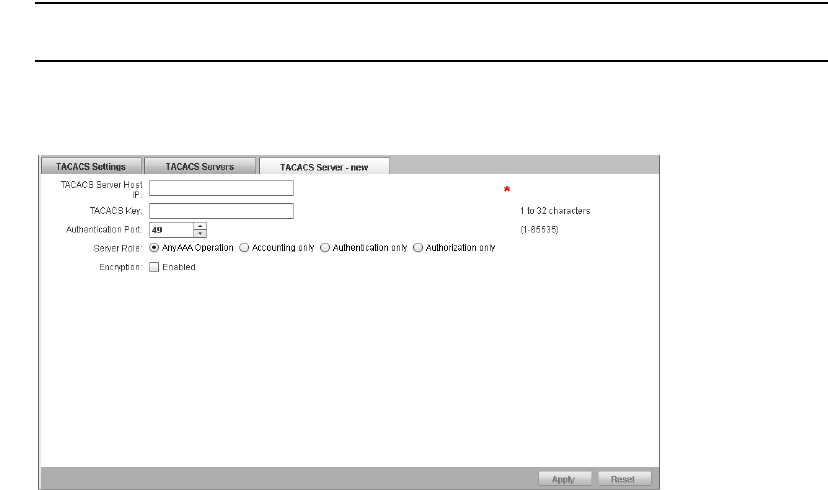

The TACACS Server tab appears.
6. On the TACACS Server... tab, set or change the following values:
• Set the TACACS Server host or IP value.
• Set the TACACS Key value.
• Set the Authentication Port value.
• Select the Server Role.
• If communications with the server are to be encrypted, mark the Encryption Enabled
checkbox.
7. Click Apply at the bottom right corner of the window to create and activate the server, or click
Reset to discard any changes you have made and return to the TACACS Servers tab.
