Brocade Virtual ADX Graphical User Interface Guide 177
53-1003242-01
Chapter
12
Viewing Network Status
In this chapter
•Interface statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
•IP statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
•IPv6 Neighbor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
•Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
•ARP cache statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
•MAC statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Interface statistics
To display statistics for all the interfaces configured on the Brocade Virtual ADX, perform the
following steps within the Monitor tab.
1. Click Network on the menu bar.
2. From the sidebar, select Interface.

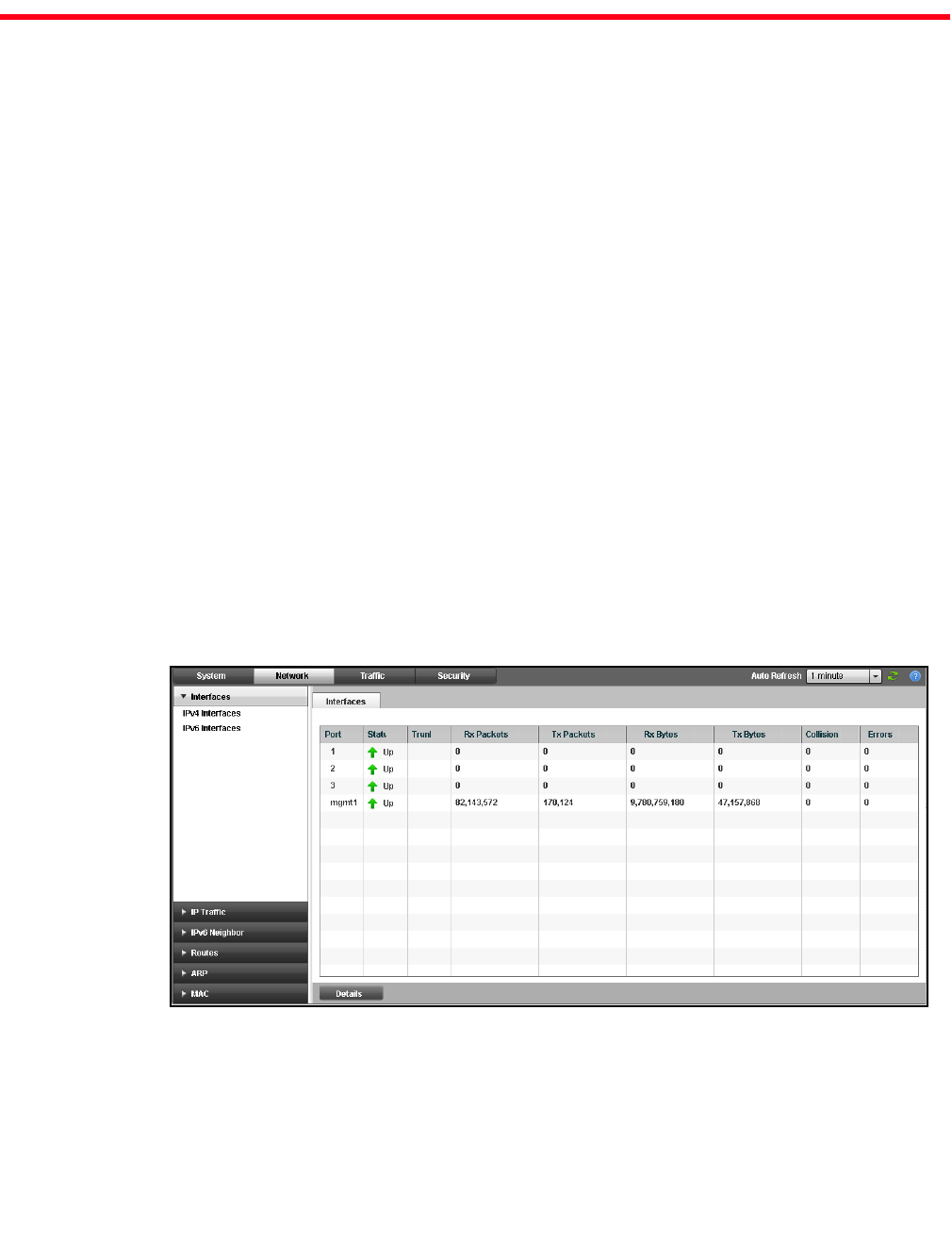

The Interface page is displayed, as shown in Figure 137.
FIGURE 137 Interface statistics
