Brocade Virtual ADX Graphical User Interface Guide 183

53-1003242-01

IP statistics

To view the IP statistics, perform the following steps within the Monitor tab.

1. Click Network on the menu bar.

2. From the sidebar, select IP Traffic.

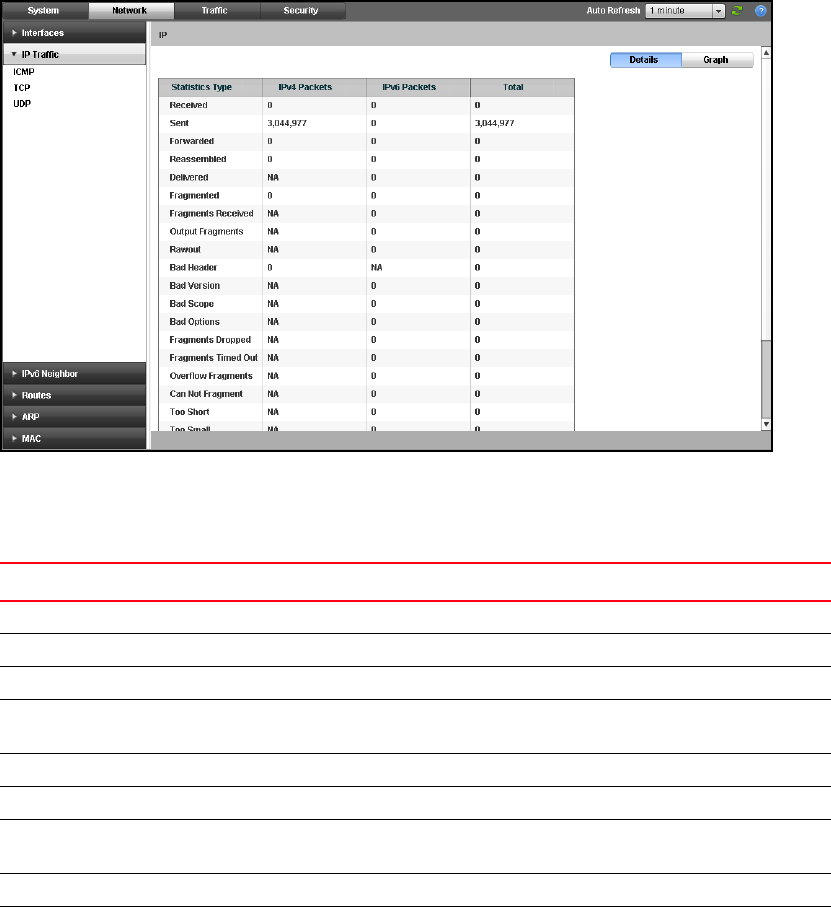

The IP page is displayed, as shown in Figure 139. To view the IP statistics in the graphical

format, click Graph. To switch the view between tabular and graphical format, click the Details

or Graph on top right corner of the IP page.

FIGURE 139 Displaying the IP traffic

The total and the individual counts of IPv4 packets for the statistic types are displayed.

The following table describes the fields available in the statistics of IP page.

TABLE 44 IP page- fields and descriptions

Field Description

Statistics Type

Received Displays the total number of IP packets received by the device.

Sent Displays the total number of IP packets originated and sent by the device.

Forwarded Displays the total number of IP packets received by the device and forwarded to

other devices.

Reassembled Displays the total number of fragmented IP packets that the device reassembled.

Delivered Displays the total number of IP packets delivered to upper level by the device.

Fragmented Displays the total number of IP packets fragmented by the device to accommodate

the MTU of this device or another device.

Fragments Received Displays the total number of fragments received by the device.

Output Fragments Displays the total number of output fragments created by the device.
