IP statistics

ICMP Statistics

To view the Internet Control Message Protocol (ICMP) sent and received information, perform the

following steps within the Monitor tab.

1. Click Network on the menu bar.

2. From the sidebar, select IP Traffic, and then select ICMP.

The ICMP page is displayed, as shown in Figure 140. By default, Received Messages tab is

displayed in the ICMP page, which provides information on the messages received by the

Brocade Virtual ADX. Click the Sent Messages tab to view the messages sent by the Brocade

Virtual ADX.

Click the Sent Error Messages tab to view the error messages sent by the Brocade Virtual ADX.

To view the ICMP statistics in the graphical format, click Graph. To switch the view between

tabular and graphical format, click the Details or Graph on top right corner of the ICMP page.

The total and the individual counts of IPv4 messages for the statistics types are displayed.

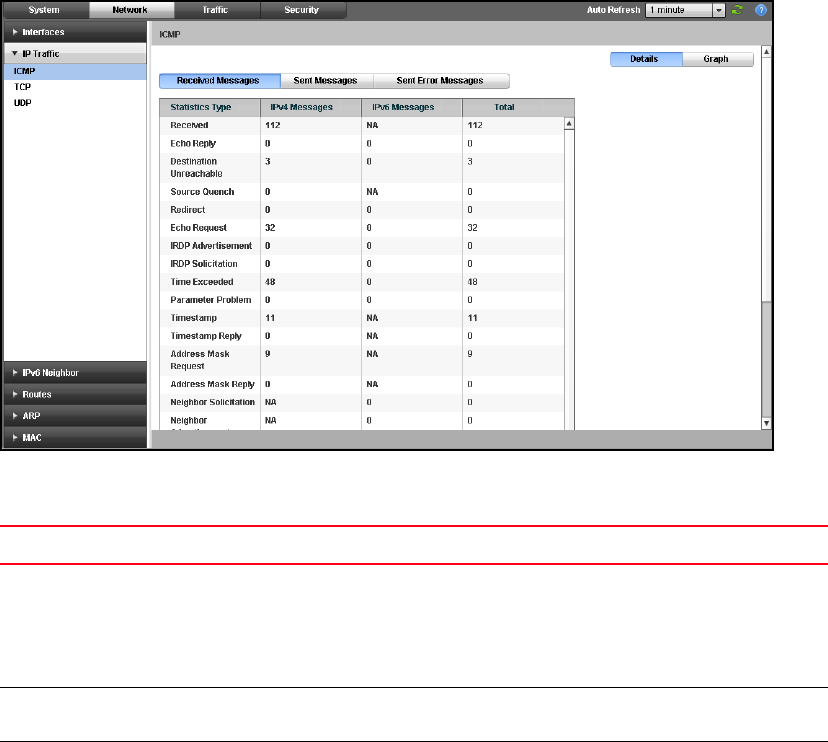

FIGURE 140 Displaying the ICMP traffic

The following table describes the fields available in the ICMP Received and Sent Messages.

TABLE 45 ICMP Received, Sent, and Sent Error Messages - fields and descriptions

Field Description

Received/Sent Displays the total number of ICMP messages received/sent by the

device.

NOTE: The Received field is displayed in the ICMP Received

Message tab, while the Sent field is displayed in the ICMP

Sent Message tab.

Echo Reply Displays the total number of ICMP echo reply messages

received/sent by the device.

Destination Unreachable Displays the total number of ICMP destination unreachable

messages received/sent by the device.
