IP statistics

TCP statistics

To view the TCP statistics on the Brocade Virtual ADX, perform the following steps within the

Monitor tab.

1. Click Network on the menu bar.

2. From the sidebar, select IP, and then select TCP.

The TCP page is displayed, as shown in Figure 141. The total and the individual counts of IPv4

and IPv6 packets for the statistic types are displayed. To view the TCP statistics in the graphical

format, click Graph. To switch the view between tabular and graphical format, click the Details

or Graph on top right corner of the TCP page.

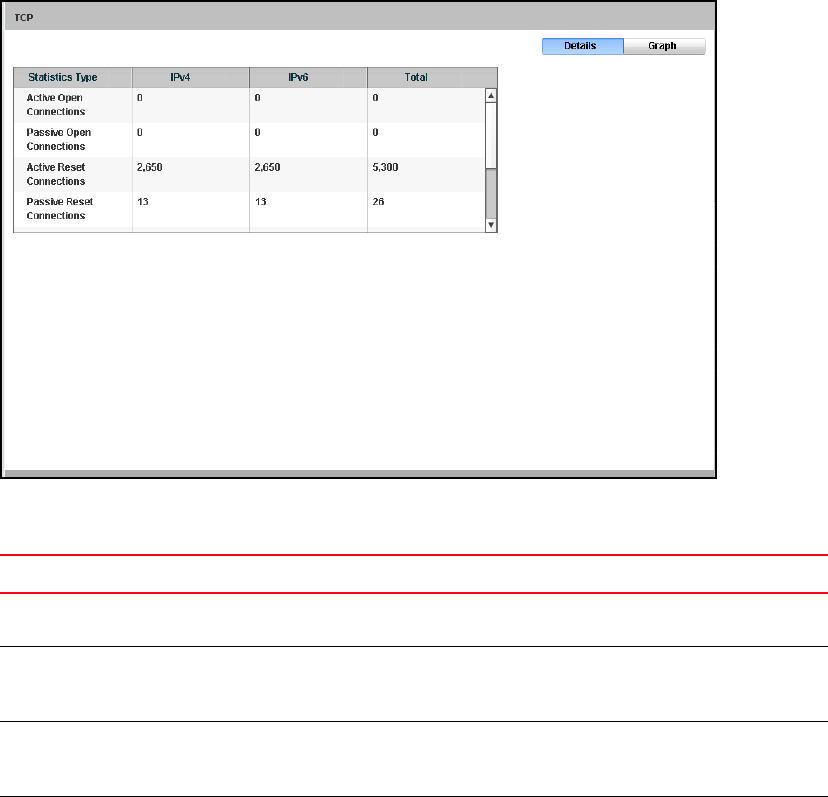

FIGURE 141 Displaying the TCP traffic

The following table describes the fields available in the TCP page.

TABLE 46 TCP page - fields and descriptions

Field Description

Active Open Connections Displays the number of TCP connections opened by the Brocade

Virtual ADX by sending a TCP SYN.

Passive Open Connections Displays the number of TCP connections opened by the Brocade

Virtual ADX in response to connection requests received from other

devices.

Active Reset Connections Displays the number of TCP connections reset occurred on the

Brocade Virtual ADX at the other end of the connection as a result

of sending a TCP reset message to the Brocade Virtual ADX.

Passive Reset Connections Displays the number of TCP connections reset occurred when the

Brocade Virtual ADX at the other end of the connection sent a TCP

reset message.
