IP statistics
12
For more information on TCP statistics, refer to the Brocade Virtual ADX Switch and Router Guide.
UDP statistics
To view the UDP statistics on the Brocade Virtual ADX, perform the following steps within the
Monitor tab.
1. Click Network on the menu bar.
2. From the sidebar, select IP, and then select UDP.
The UDP page is displayed, as shown in Figure 142. The total and the individual counts of IPv4
and IPv6 packets for the statistic types are displayed. To view the UDP statistics in the
graphical format, click Graph. To switch the view between tabular and graphical format, click
the Details or Graph on top right corner of the UDP page.

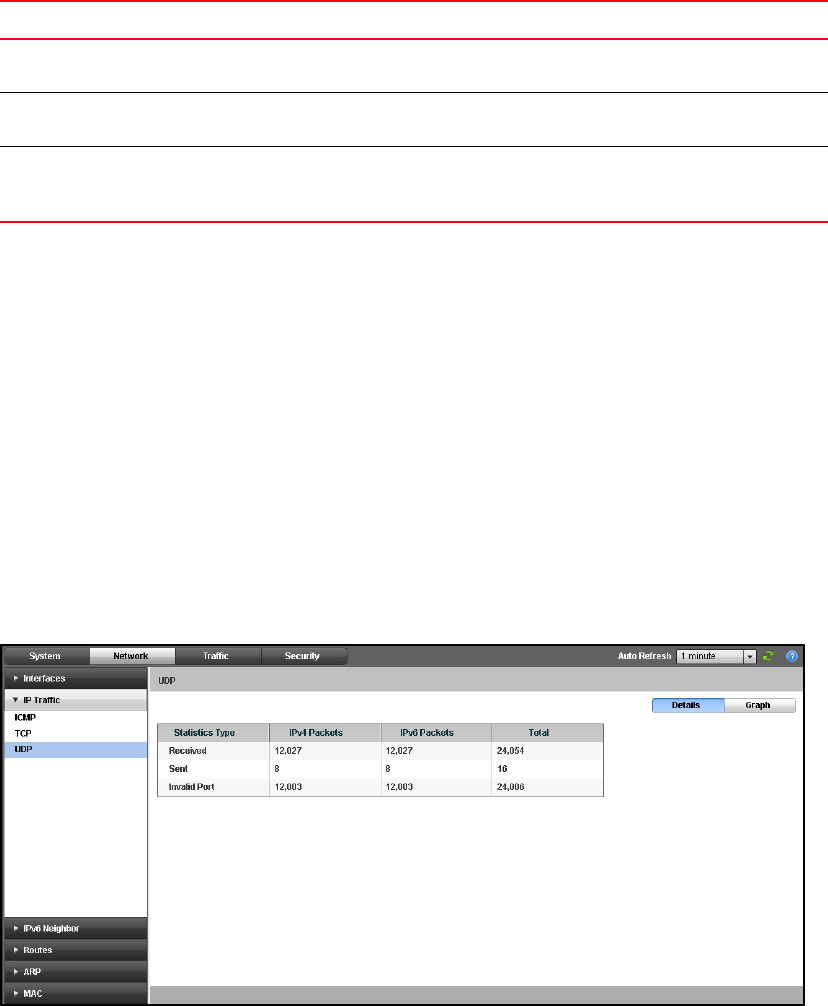

FIGURE 142 Displaying the UDP traffic
Received Segments Displays the number of TCP segments received by the Brocade
Virtual ADX.
Sent Segments Displays the number of TCP segments sent by the Brocade Virtual
ADX.
Retransmitted Segments Displays the number of segments that the Brocade Virtual ADX
retransmitted before the Brocade Virtual ADX at the other end of
the connection had acknowledged receipt of the segment.
TABLE 46 TCP page - fields and descriptions (Continued)
Field Description
