(Supporting ADX v03.1.00) Owner's manual

Brocade Virtual ADX Graphical User Interface Guide 201
53-1003242-01
Chapter
13
Viewing Traffic Statistics
In this chapter
•Global traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
•Virtual servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
•Real servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
•Content switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
•OpenScript . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
•Session information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Global traffic
To display the global traffic statistics on the Brocade Virtual ADX, perform the following steps within
the Monitor tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Global Traffic.
The Global Traffic page is displayed, as shown in Figure 145.

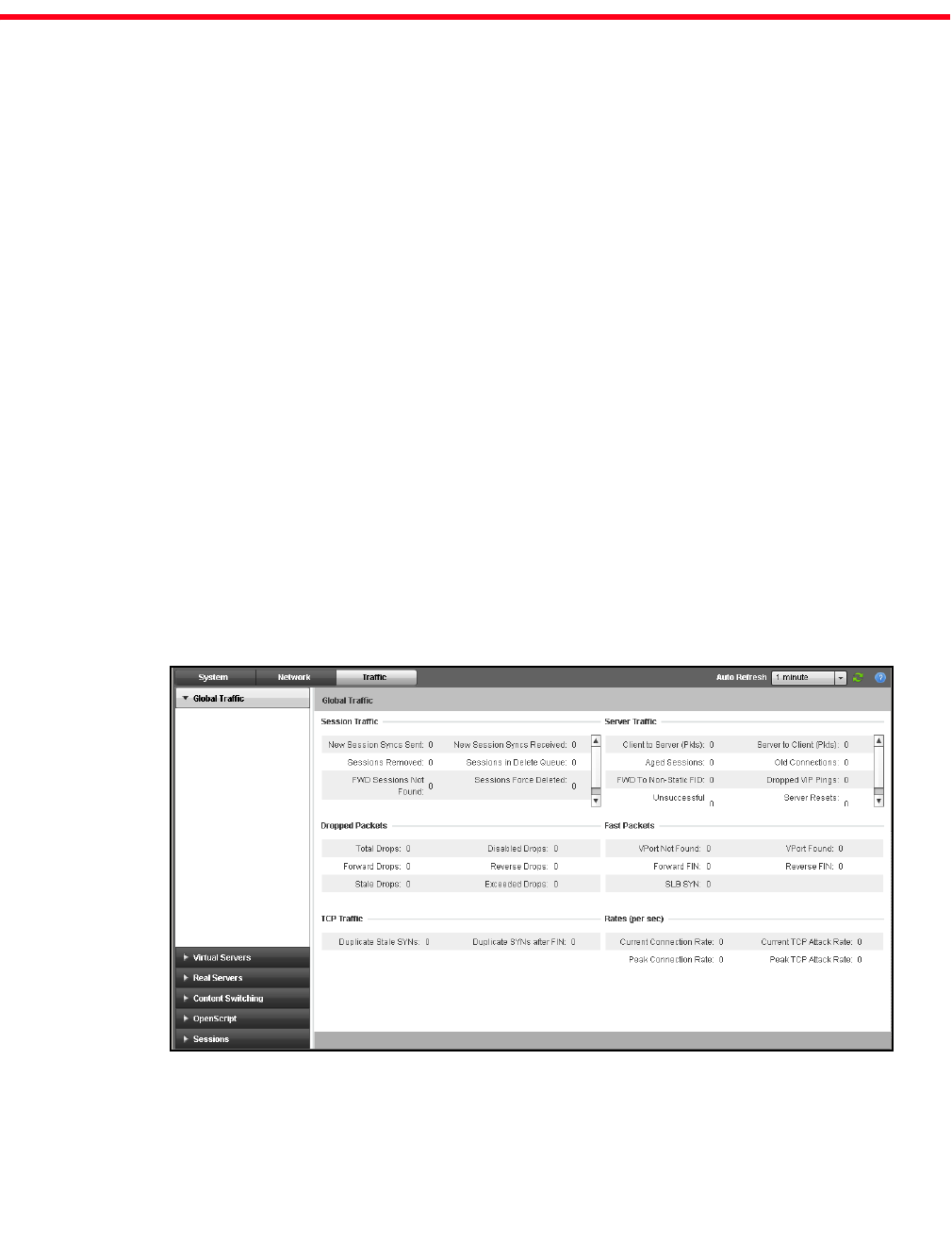

FIGURE 145 Displaying the global traffic
