Virtual servers

Virtual server statistics

To view the virtual server statistics on the Brocade Virtual ADX, perform the following steps within

the Monitor tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select Virtual Server.

The Virtual Servers page is displayed, as shown in Figure 146.

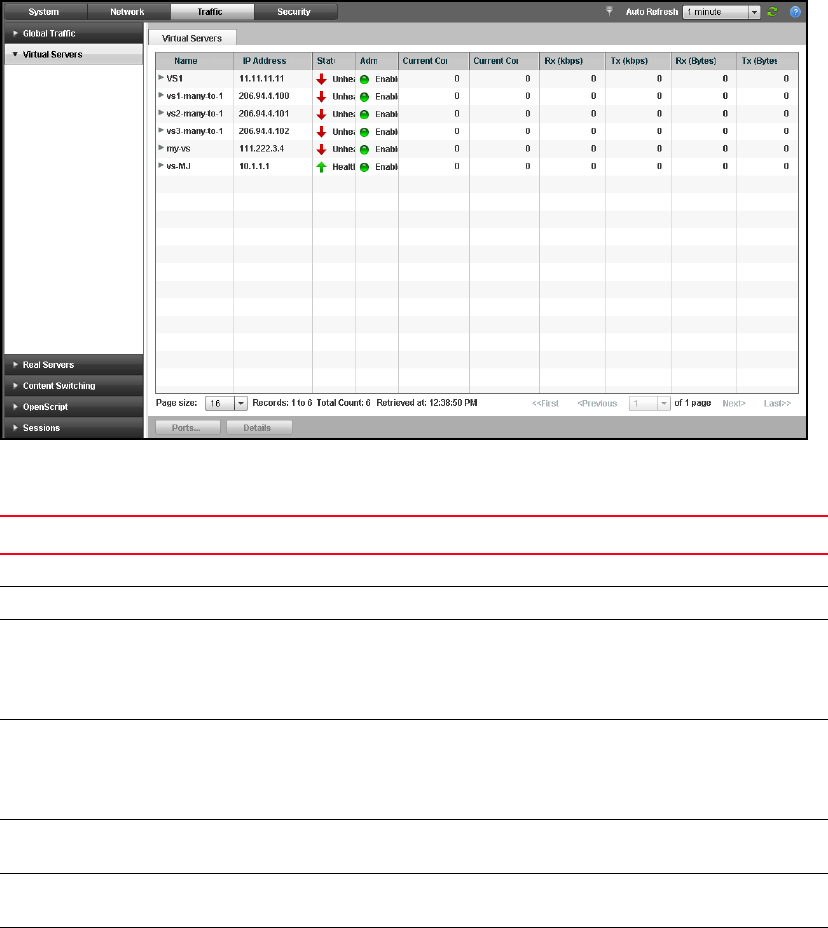

FIGURE 146 Displaying the virtual servers

The following table describes the fields available in the Virtual Servers page.

TABLE 60 Virtual Servers page - fields and descriptions

Field Description

Name Displays the name of the virtual servers.

IP Address Displays the IP address of the virtual servers.

Status Displays the runtime health of the virtual servers. The health status

can be one of the following:

• Healthy

• Not Healthy

Admin State Displays the admin state of the virtual server. The admin status can

be one of the following:

• Enabled

• Disabled

Current Connections Displays the number of client connections currently on the virtual

servers.

Rx (kbps) Displays the number of packets received by the virtual servers in

kilobits per second.

Tx (kbps) Displays the number of packets transmitted by the virtual servers

in kilobits per second.
