Brocade Virtual ADX Graphical User Interface Guide 205

53-1003242-01

Virtual servers

Virtual server details

To view the details of a virtual server configured on the Brocade Virtual ADX, perform the following

steps within the Monitor tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select Virtual Servers.

3. Select a configuration from the Virtual Servers page and click Details to view the detailed

statistics of that virtual server. Also, you can double click a configuration for which you want to

view the detailed statistics.

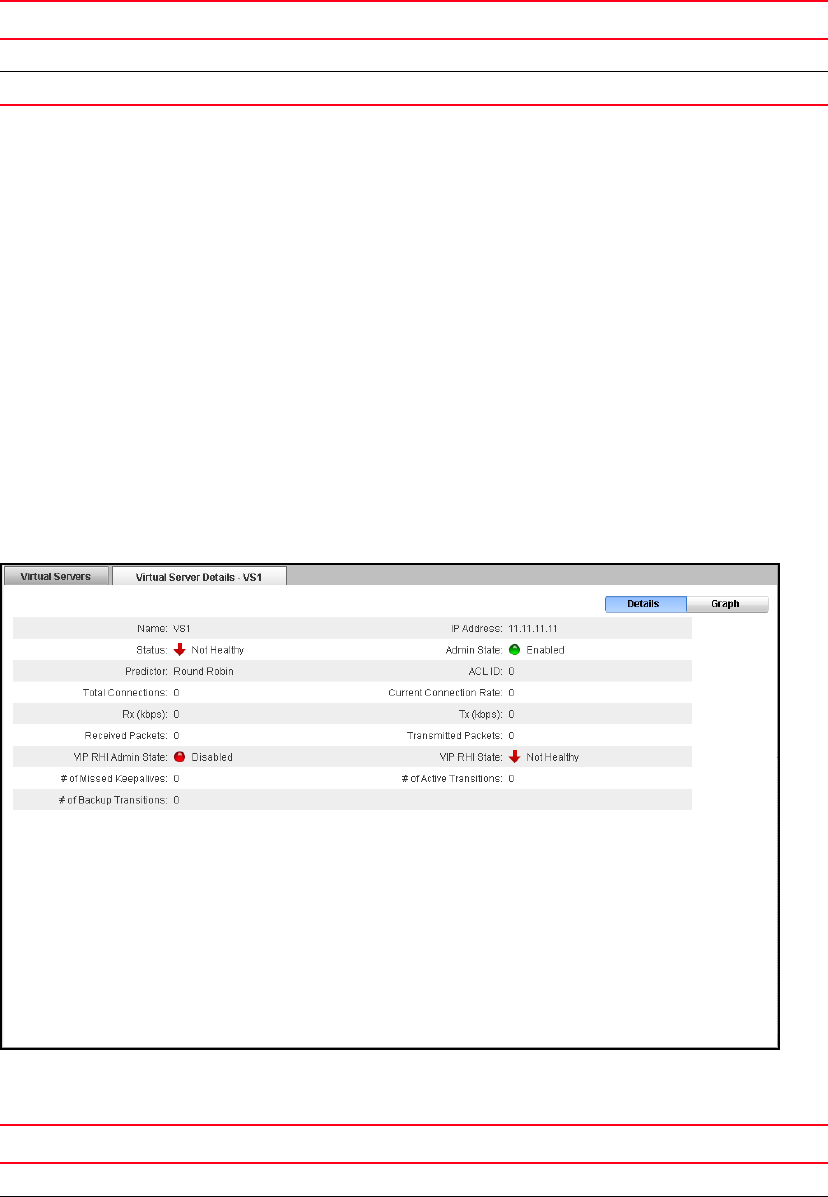

A new Virtual Server Details page tab is displayed, as shown in Figure 147. To view the

interface details in the graphical format, click Graph. To switch the view between tabular and

graphical format, click the Details or Graph on top right corner of the Virtual Server Details

page.

FIGURE 147 Displaying the virtual server details

The following table describes the fields available in the Virtual Server Details page.

Rx (Bytes) Displays the number of bytes received by the virtual servers.

Tx (Bytes) Displays the number of bytes transmitted by the virtual servers.

TABLE 61 Virtual Server Details page - fields and descriptions

Field Description

Name Displays the name of the virtual server.

IP Address Displays the IP address of the virtual server.

TABLE 60 Virtual Servers page - fields and descriptions (Continued)

Field Description
