208 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

Virtual servers

Virtual server port details

To view the details of a virtual server port configured on the Brocade Virtual ADX, perform the

following steps within the Monitor tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select Virtual Servers.

3. Select a configuration from the Virtual Servers page and click Port.

4. Select a port configuration from the All Virtual Servers Ports page and click Details.

A new Virtual Server Port Details page tab is displayed, as shown in Figure 149. To view the

port details in the graphical format, click Graph. To switch the view between tabular and

graphical format, click the Details or Graph on top right corner of the Virtual Server Port Details

page.

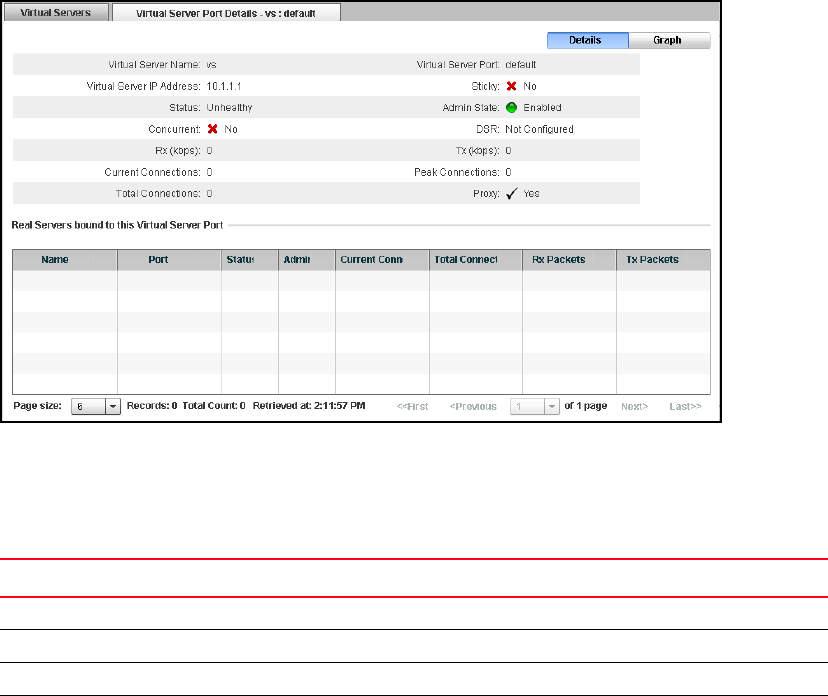

FIGURE 149 Displaying the virtual server port details

The Virtual Server Port Details page displays a table that lists the real servers that are bound to the

virtual server port.

The following table describes the fields available in the Virtual Server Port Details page.

TABLE 63 Virtual Server Port Details page - fields and descriptions

Field Description

Virtual Server Name Displays the name of the virtual server bound to this port.

Virtual Server Port Displays the name of the virtual server port.

Virtual Server IP Address Displays the IP address of the virtual server bound to this port.

Sticky Displays the state of the sticky in the virtual server port. The status

can be one of the following:

• No

• Yes
