Real servers
13
Real server ports
To view the statistics of all the real server ports configured on the Brocade Virtual ADX, perform the
following steps within the Monitor tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Real Servers.
3. Select a configuration from the Real Servers page and click Port.
4. Select a port configuration from the All Real Servers Ports page and click Details.
The All Real Server Ports page is displayed, as shown in Figure 152. To view the port details in
the graphical format, click Graph. To switch the view between tabular and graphical format,
click the Details or Graph on top right corner of the Real Server Port Details page.

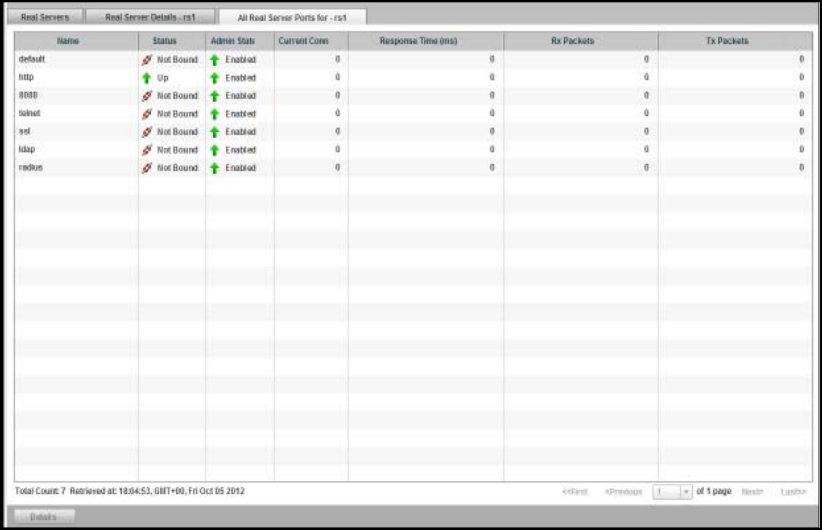

FIGURE 152 Displaying the real server ports
