Brocade Virtual ADX Graphical User Interface Guide 215

53-1003242-01

Real servers

4. Click Details to view the detailed statistics of that real server port.

A new Real Server Port Details page is displayed, as shown in Figure 153. To view the port

details in the graphical format, click Graph. To switch the view between tabular and graphical

format, click the Details or Graph on top right corner of the Real Server Port Details page

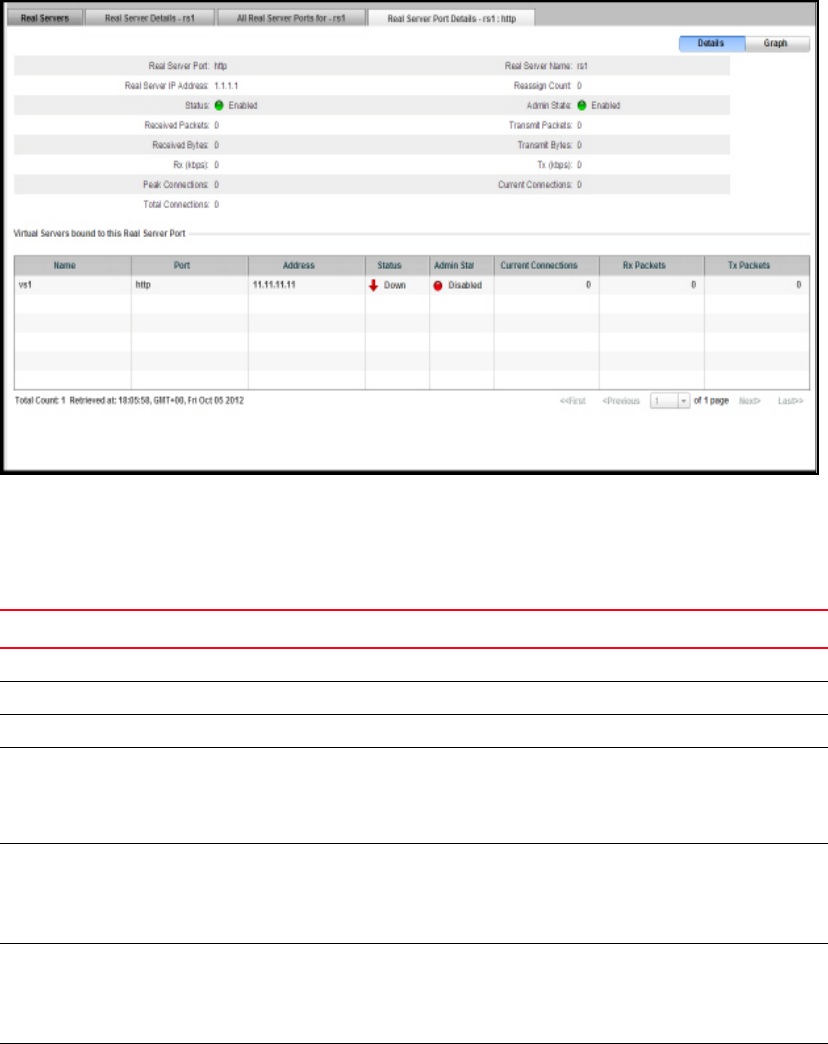

FIGURE 153 Displaying the real server port details

The Real Server Port Details page displays a table that lists the real servers that are bound to the

virtual server port.

The following table describes the fields available in the Real Server Port Details page.

TABLE 67 Real Server Port Details page - fields and descriptions

Field Description

Real Server Port Displays the name of the real server port.

Real Server Name Displays the name of the real server bound to this port.

Real Server IP Address Displays the IP address of the real server.

Reassign Count Displays the number of times the Brocade Virtual ADX has

reassigned the connection to another server in the rotation

because the server that is in use has not responded to two

contiguous TCP SYNs from the client.

Status Displays the runtime health of the virtual server port. The status

can be one of the following:

• Enabled

• Disabled

Admin State Displays the admin state of the virtual server port. The status can

be one of the following:

• Enabled

• Disabled

Received Packets Displays the total number of packets received on the port.
