222 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

OpenScript

To view the OpenScript statistics, perform the following steps within the Monitor tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select OpenScript.

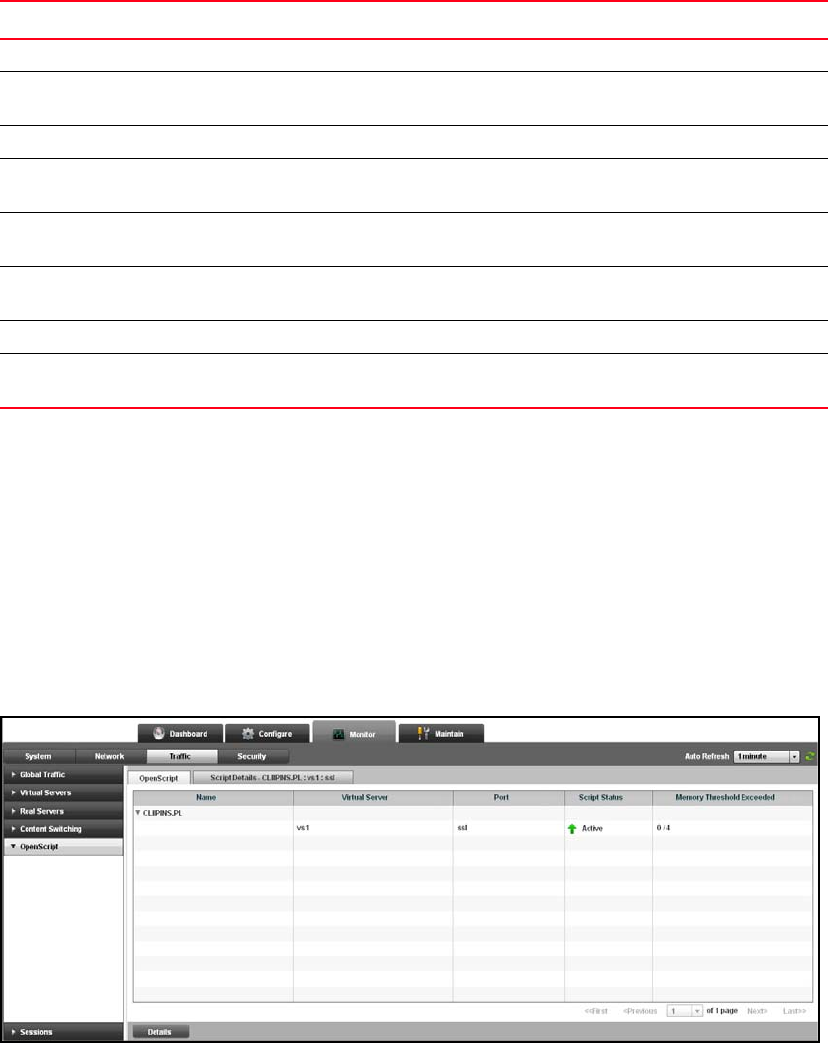

The OpenScript page is displayed, as shown in Figure 156.

FIGURE 156 Displaying OpenScript traffic

Cookies Deleted Displays the total number of cookies deleted in HTTP requests.

Cookies Deletion Errors Displays the number of error that occurred when deleting the

cookies in HTTP requests.

Cookies Destroyed Displays the number of cookies destroyed during HTTP requests.

Cookies Destroyed Errors Displays the number of error that occurred while destroying the

cookies in HTTP requests.

Client IP Headers Inserted Displays the total number of client IP headers inserted in HTTP

requests.

Client IP Headers Insertion Errors Displays the number of errors that occurred when inserting client

IP headers in HTTP requests.

Headers Inserted Displays the total number of headers inserted in HTTP requests.

Headers Insertion Errors Displays the number of errors that occurred when inserting

headers in HTTP requests.

TABLE 73 Rewrite Statistics page - fields and descriptions (Continued)

Field Description
