SSL statistics

SSL profiles

To display the SSL profile statistics, perform the following steps within the Monitor tab.

1. Click Security on the menu bar.

2. From the sidebar, select SSL, and then select SSL Profiles.

The SSL Profiles page is displayed, as shown in Figure 165.

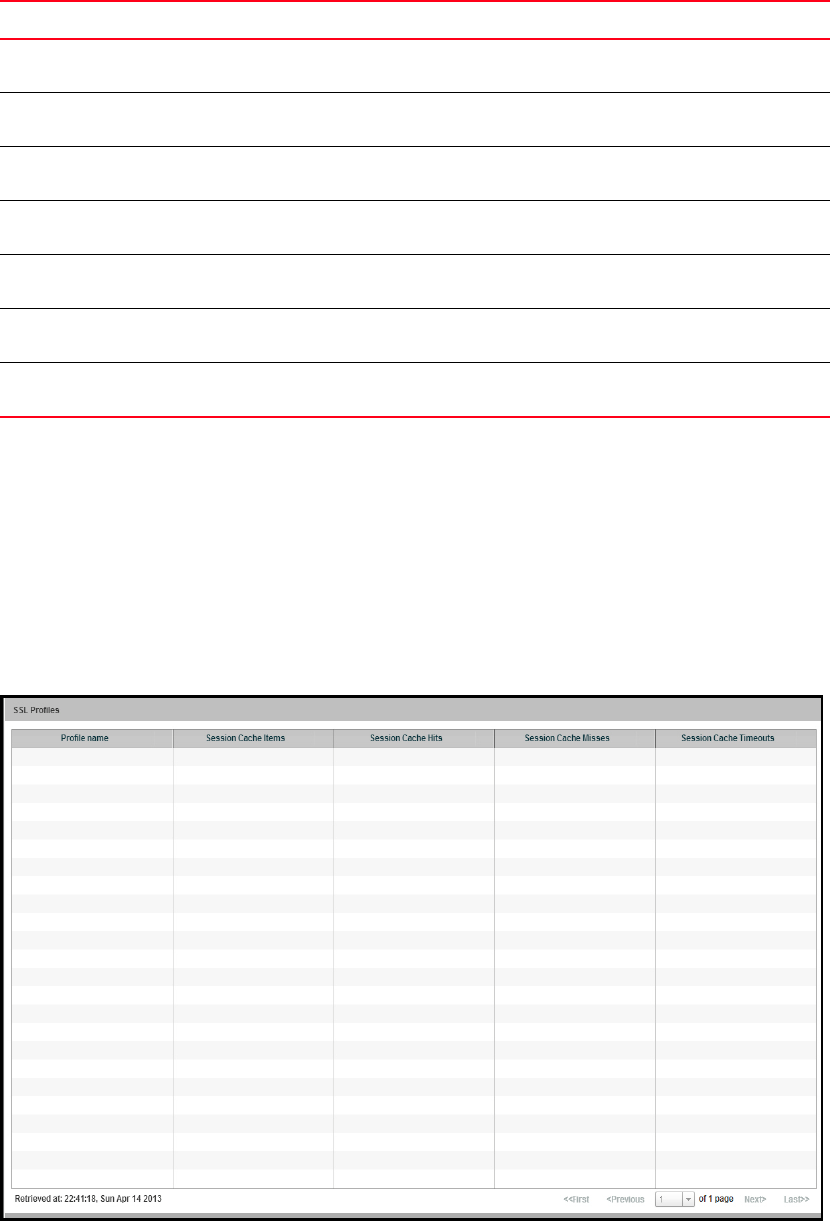

FIGURE 165 SSL Profiles page

Bad Certificate Displays the number of alerts received and transmitted by the device for bad

certificates.

Unsupported Certificate Displays the number of alerts received by the device for unsupported

certificates.

Certificate Revoked Displays the number of alerts received and transmitted by the device for

revoked certificates.

Certificate Expired Displays the number of alerts received and transmitted by the device for

expired certificates.

Certificate Unknown Displays the number of alerts received and transmitted by the device for

unknown certificates.

Decrypt Error Displays the number of alerts received and transmitted by the device for

decryption error.

No Renegotiation Displays the number of alerts received and transmitted by the device for no

renegotiation.

TABLE 81 SSL Alerts page - fields and descriptions (Continued)

Field Description
