Brocade Virtual ADX Graphical User Interface Guide 13

53-1003242-01

Traffic view

The Traffic dashboard displays network traffic information including traffic distribution, sessions

and connections for service, and service response time.

To view the Traffic dashboard, select the Dashboard tab in the task bar and click Traffic on the

menu bar.

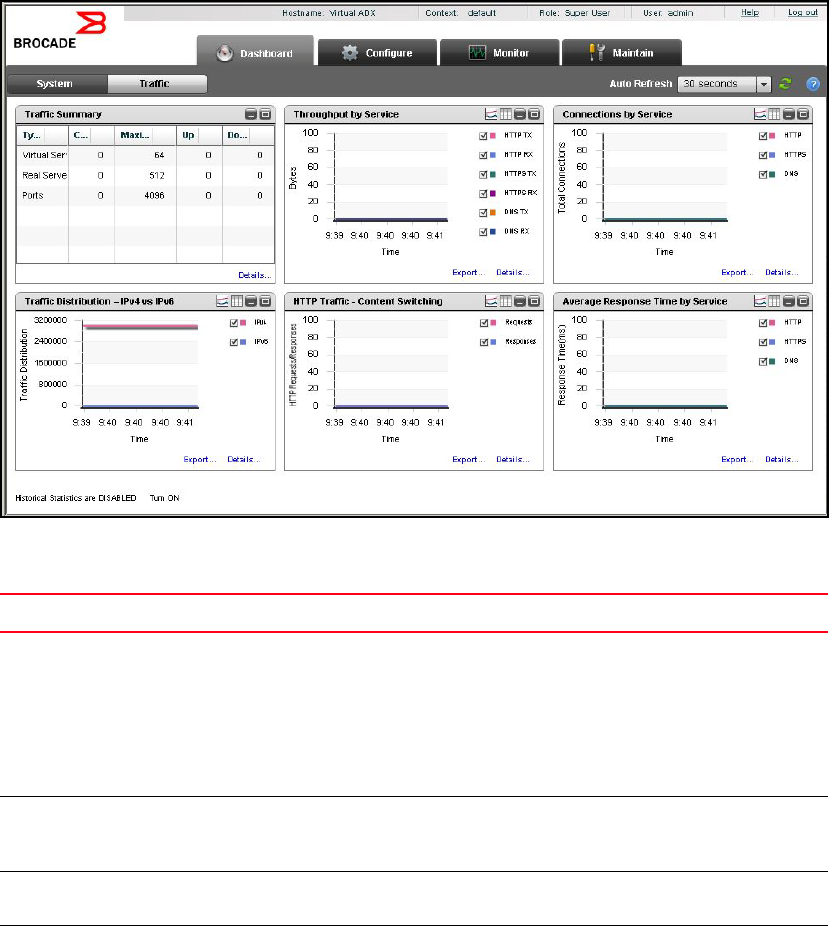

The Traffic dashboard page is displayed, as shown in Figure 7.

FIGURE 7 Traffic dashboard

The Traffic dashboard contains six pods. See Table 3.

TABLE 3 Traffic dashboard pods

Pod Description

Traffic Summary Allows you to monitor the status of the virtual servers, real servers, and

ports configured on the Brocade Virtual ADX in a tabular format. You can

also monitor the following:

• Total count of virtual servers, real servers, and ports.

• Maximum number virtual servers, real servers, and ports that can be

configured on the Brocade Virtual ADX.

• Number of virtual servers, real servers, and ports that are disabled.

Throughput by Service Allows you to monitor the transmission and reception of packets in bits per

seconds (BPS) over time based on Hypertext Transfer Protocol (HTTP),

Hypertext Transfer Protocol secure (HTTPS), Domain Name System (DNS).

Connections by Service Allows you to monitor the sessions over time based on HTTP, HTTPS, and

DNS.

Traffic Distribution - IPv4 vs IPv6 Allows you to monitor the client traffic based on IPv4 versus IPv6.
