Brocade Virtual ADX Graphical User Interface Guide 239

53-1003242-01

Chapter

Managing Software Images

In this chapter

•Uploading the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Uploading the software

You can upload a software image on the device from a Trivial File Transfer Protocol (TFTP) server.

While uploading the image, make sure that there are no power failures.

To upload the software image from the TFTP server, perform the following steps within the Maintain

tab.

1. Click System on the menu bar.

2. From the sidebar, select Software Upload.

The Software Upload page is displayed, as shown in Figure 167.

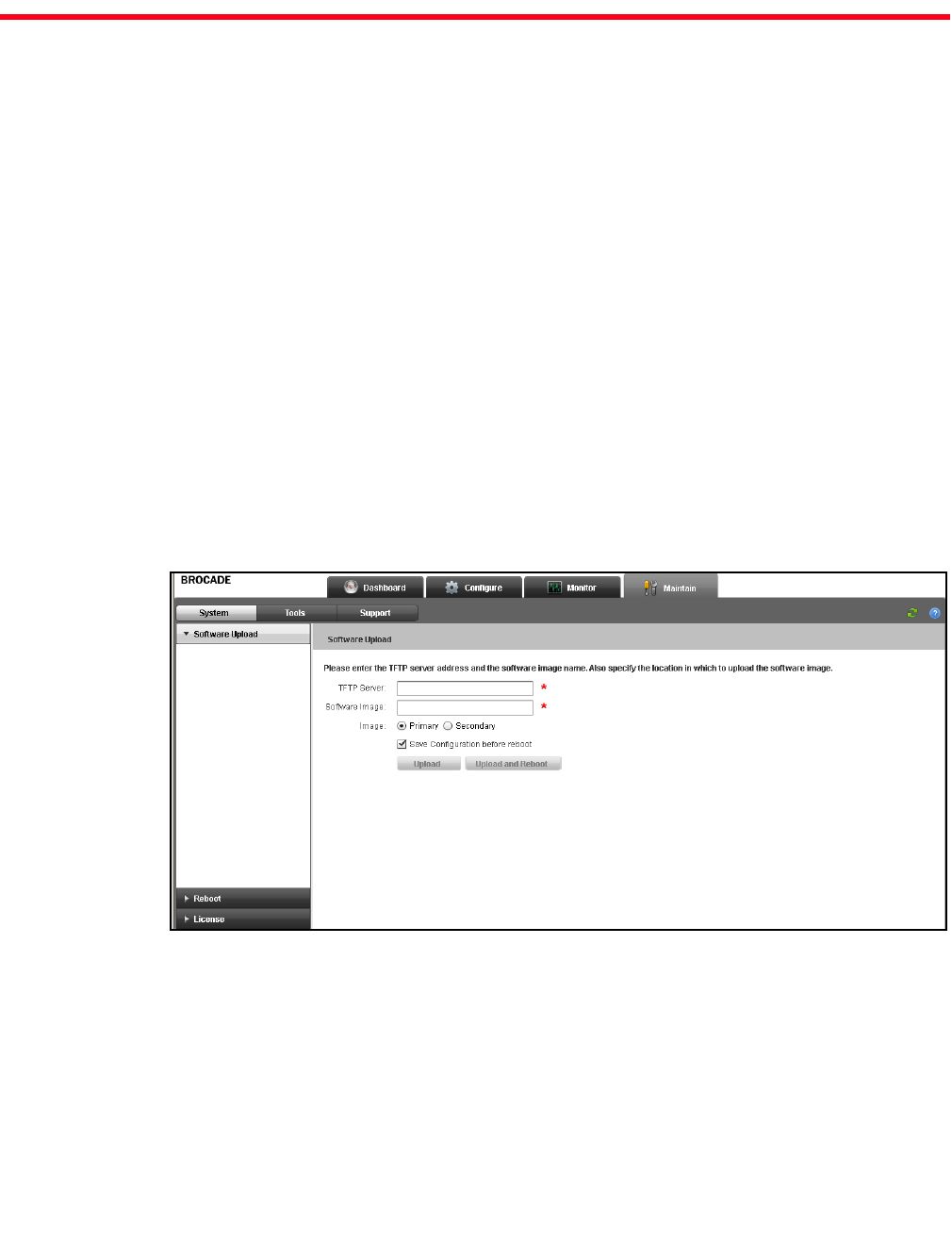

FIGURE 167 Uploading the software

3. Provide the following information:

• TFTP Server: Enter the IP address of the TFTP server.

• Software Image: Enter the name of the software image.

• Image: Click Primary or Secondary image in which you want to upload the software image.

By default, the primary flash image is selected.

• Save Configuration before reboot: Select the check box to save the running configuration

before reboot.
