Brocade Virtual ADX Graphical User Interface Guide 15

53-1003242-01

Chapter

Configuration Overview

In this chapter

•Navigating the configuration tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

•Saving the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Navigating the configuration tab

The Configure tab is the second tab in the Brocade Virtual ADX web interface.

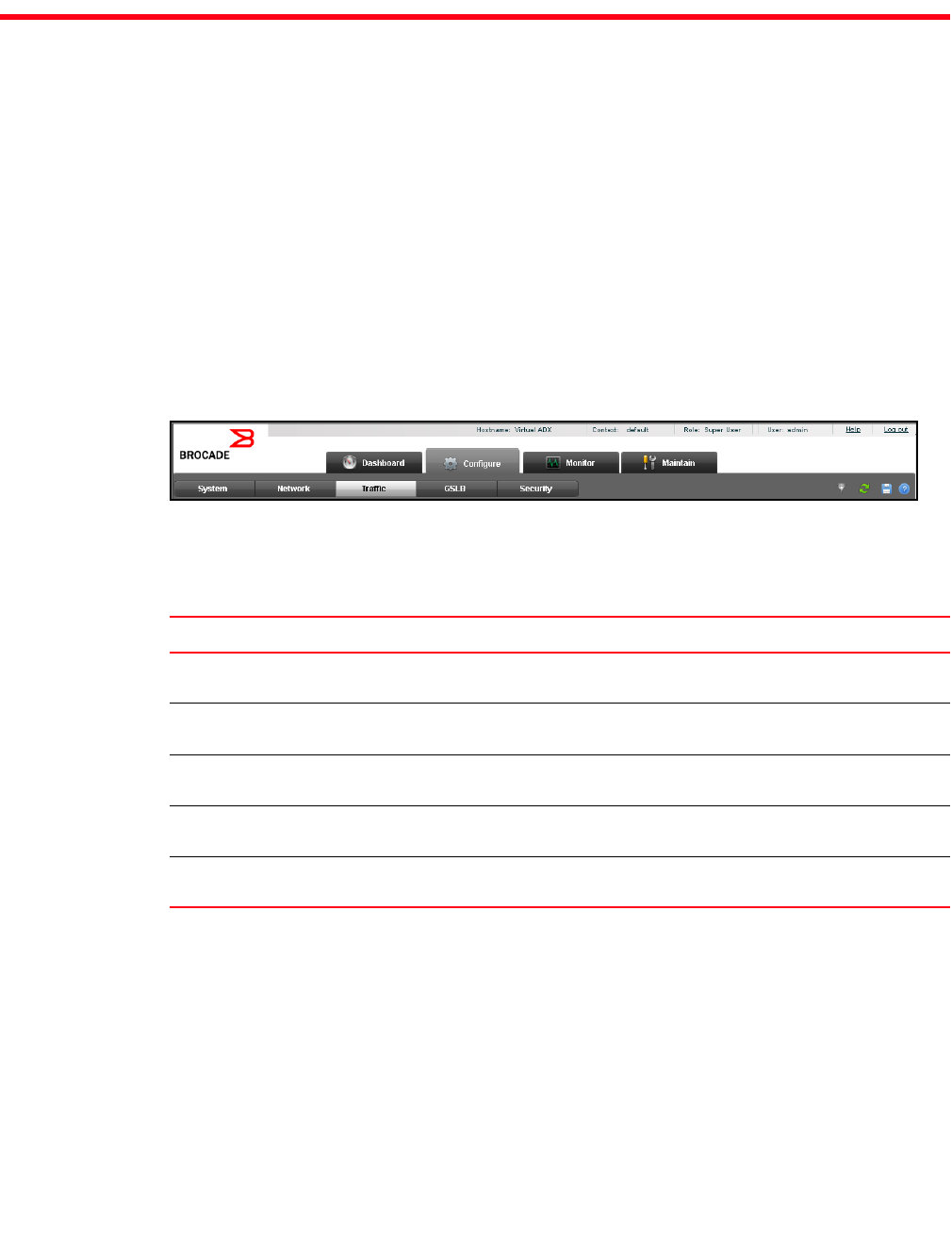

FIGURE 8 Configure tab

You can use the Configure tab to configure the system, network, traffic, or security settings on an

Brocade Virtual ADX. When you click the Configure tab, the following menus are displayed in the

menu bar. See Table 4.

By default, the Brocade Virtual ADX web interface displays the System menu after you click the

Configure tab.

Click a menu that represents the primary task that you want to perform from the menu bar, the

corresponding entities specific to the menu are displayed in the sidebar. From the sidebar, select

an entity that represents a configuration feature. The corresponding Summary page with a list of

configured entities specific to the feature in tabular format is displayed in the main page. For

example, when you select the Real Servers entity from the sidebar, the main page displays a

summary page with the list of real servers configured in the Brocade Virtual ADX. The list displays

up to 30 configuration entries. You can navigate to view the next or previous set of configuration

TABLE 4 Configure tab menu bar

Menu Description

System Allows you to configure the features specific to basic system settings and

limits, High Availability (HA), and user management.

Network Allows you to configure the features specific to interfaces, static routes,

and Virtual Local Area Networks (VLANs).

Traffic Allows you to configure the features specific to virtual server, real server,

health checks, content switching, and OpenScripts.

GSLB Allows you to configure the feature specific to the Global Server Load

Balancing (GSLB) site.

Security Allows you to configure the features specific to Secure Socket Layer (SSL)

and certificate management.
