24 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

Config Sync

The Config Sync controls allow you to configure the Brocade Virtual ADX for automated

synchronization.

Config Sync Summary tab

To configure the Config Sync settings on the Brocade Virtual ADX, perform the following steps

within the Configure tab.

1. Select the Configure tab.

2. Click System on the menu bar.

3. From the sidebar, select Config Sync.

By default, only the Summary page is displayed when you first select Config Sync. See

Figure 15.

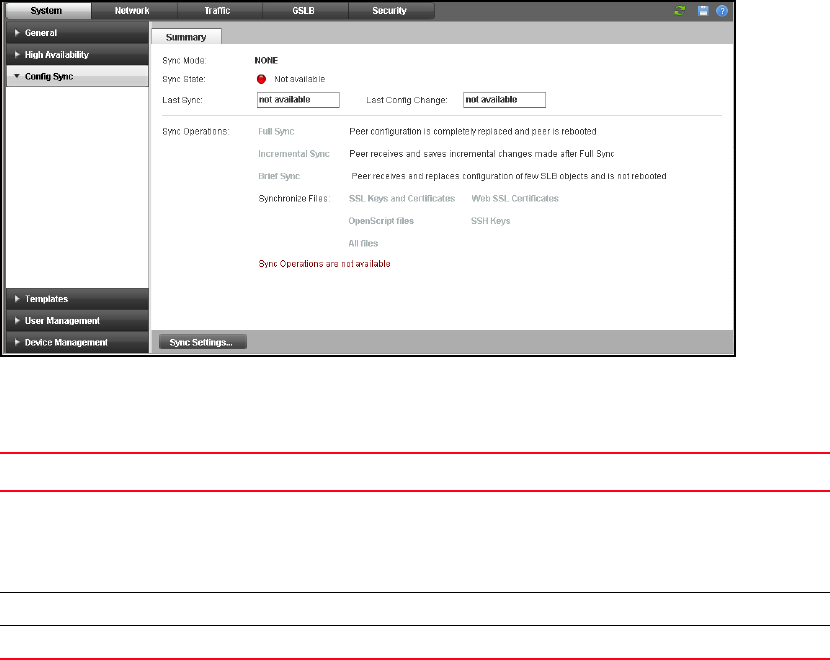

FIGURE 15 Config Sync Summary page

The Config Sync Summary tab has the following controls. See Table 7.

Use the Config Sync Summary tab to:

• Navigate to the Sync Settings tab. Click the Sync Settings... button. See “Config Sync Settings

tab”.

TABLE 7 Config Sync summary tab controls

Control Description

Sync State Read-only field with a colored indicator for each state. Options are:

• Red indicator: Not available or not in sync

• Yellow indicator: Sync in progress or not retrieved yet

• Green indicator: In sync

Last Sync Date and time of last synchronization.

Last Config Change Date and time of last configuration change.
