Brocade Virtual ADX Graphical User Interface Guide 25

53-1003242-01

Config Sync

Config Sync Settings tab

To configure the Config Sync synchronization controls on the Brocade Virtual ADX, perform the

following steps within the Configure tab.

1. Select the Configure tab.

2. Click System on the menu bar.

3. From the sidebar, select Config Sync.

4. Click the Sync Settings… button.

The Sync Settings tab is displayed. See Figure 16.

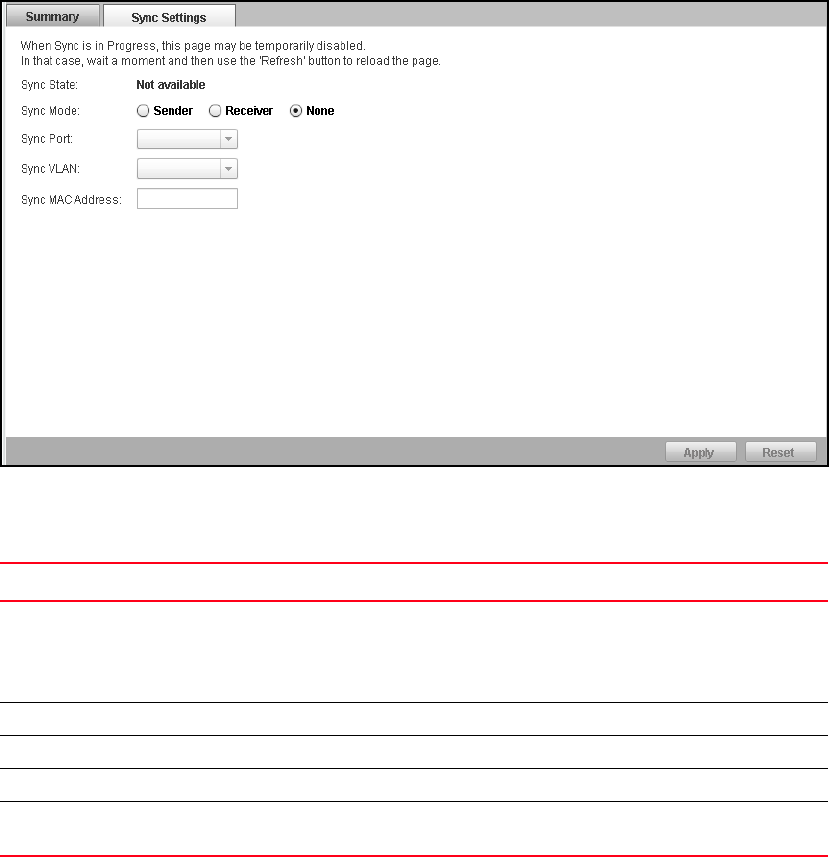

FIGURE 16 Sync Settings page

The Config Sync Settings tab has the following controls. See Table 8.

Click Apply at the bottom right corner to apply any change you have made, or click Reset to discard

all changes.

TABLE 8 Config Sync Settings tab controls

Column Content

Sync State Read-only field. Options are:

• Not available or not in sync (Red indicator)

• Sync in progress or sync not retrieved yet (yellow indicator)

• In sync (green indicator)

Sync Mode Device role. Options are Sender, Receiver, or None (not enabled).

Sync Port Port used for synchronization.

Sync VLAN VLAN ID for synchronization.

Sync MAC Address MAC address used for synchronization. This value is required for devices configured as

Sender, and optional for devices configured as Receiver.
