Brocade Virtual ADX Graphical User Interface Guide 31
53-1003242-01
Templates
5
Viewing the Raw XML and Tree Structure of a template
From the View Template tab, you can view the raw XML and the tree structure of the Config
Template.
1. Select the template from the Templates tab
2. Click View to view the View Raw XML and Browse Tree Structure tabs. See Figure 21.

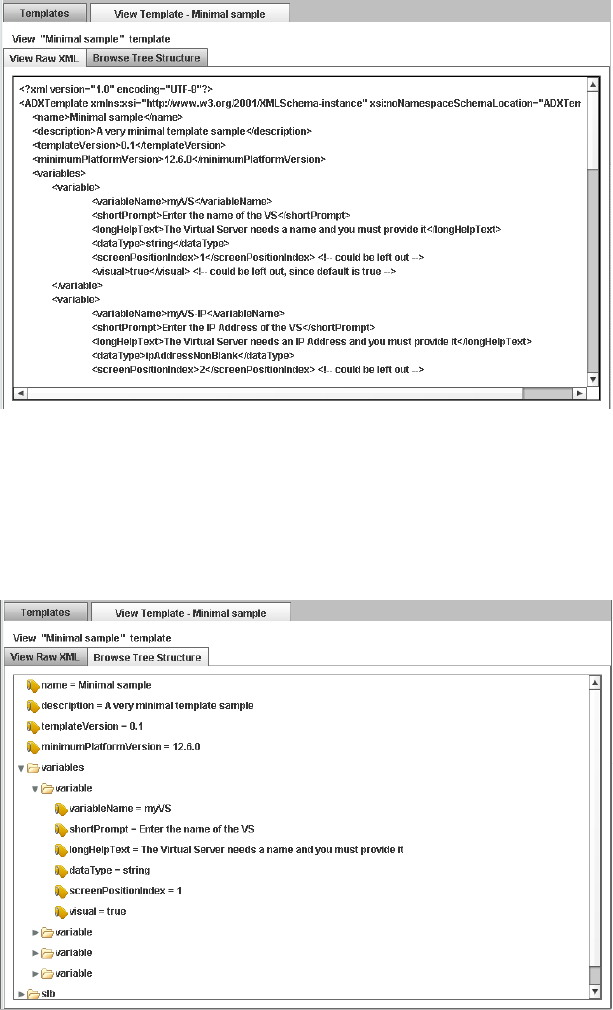

FIGURE 21 View Raw XML
• The View Raw XML tab contains the XML for the template. Within the text area, you can
select sections of the XML and copy it into the clipboard and paste it into an editor for use
with another template.
• Select the Browse Tree Structure tab to view more detail of the contents of the raw XML
and how it has been set up. See Figure 22.
FIGURE 22 Browse Tree Structure
