40 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

Device management

SNMP Settings tab

To view the SNMP Settings page, perform the following actions in the Configure tab:

1. Click System on the menu bar.

2. From the sidebar, select Device Management.

3. Click SNMP in the sidebar sub-menu to display the SNMP controls.

The SNMP Settings tab is displayed. See Figure 30.

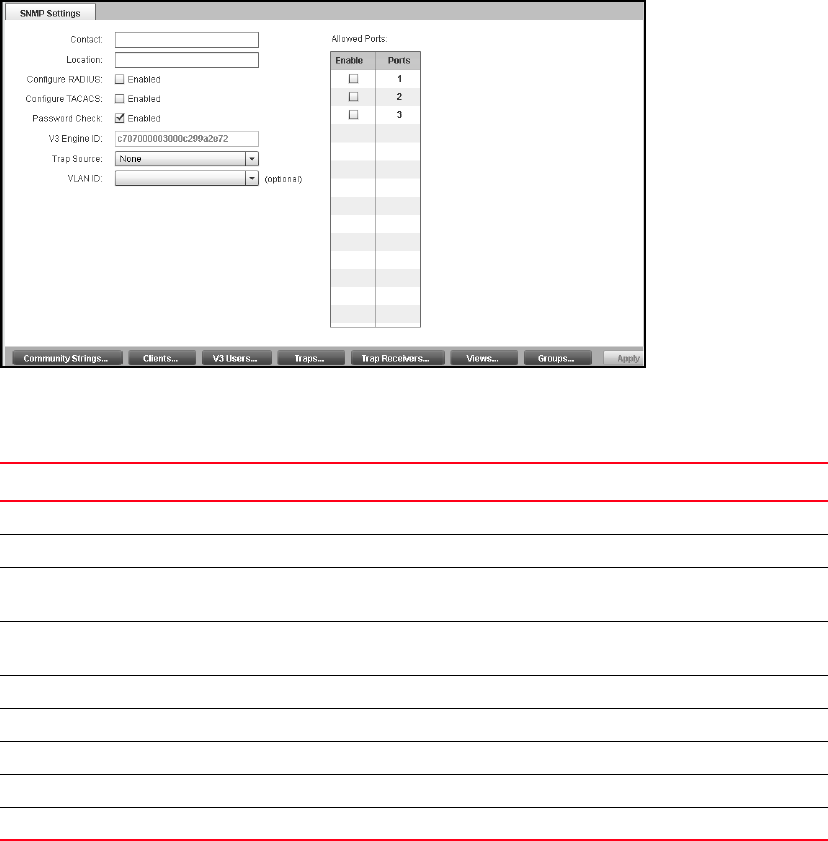

FIGURE 30 SNMP Settings page

The SNMP Settings tab has the following controls. See Table 9.

TABLE 9 SNMP Settings tab controls

Field Content

Contact The email address to be used by this server for alerts and messages.

Location The location name for this server. This will be printed in any traps that may occur.

Configure RADIUS

enabled

If marked, enables RADIUS configuration. See “RADIUS controls”.

Configure TACACS

enabled

If marked, enables TACACS configuration. See “TACACS controls”.

Password check If marked, requires password on login.

V3 Engine ID The V3 Engine ID for this server. This is a read-only field.

Trap Source The source interface to be used for traps.

VLAN ID The VLAN ID of this server. (Optional)

Allowed Ports Marking the checkbox for a port enables it; unmarking the checkbox disables it.
