Device management
5
Views tab
To view the Views page, perform the following actions in the Configure tab:
1. Click System on the menu bar.
2. From the sidebar, select Device Management.
3. Click SNMP in the sidebar sub-menu to display the SNMP Settings tab.
4. Click the Views button at the bottom of the window.
The Views page is displayed. See Figure 36.

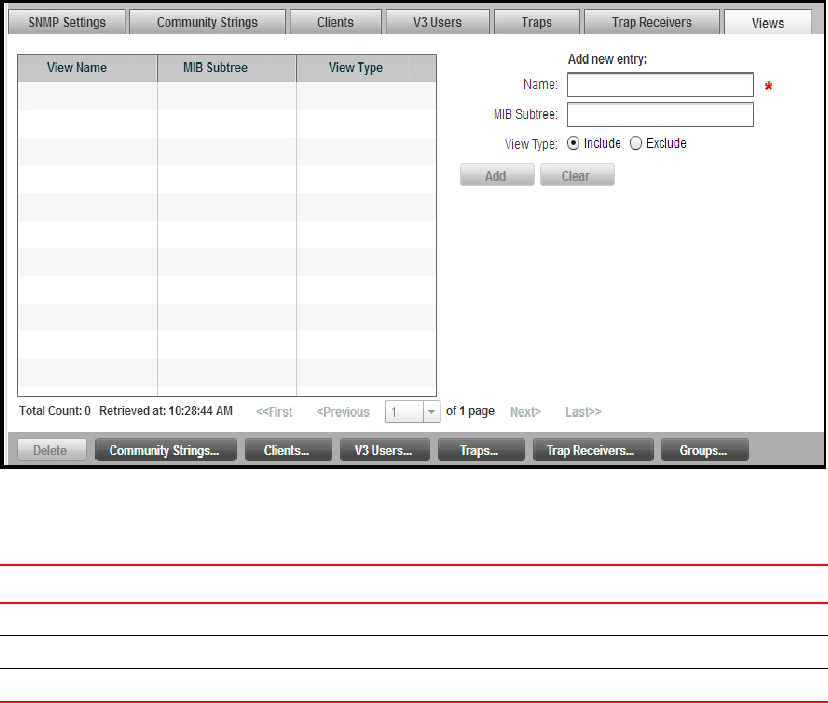

FIGURE 36 Views page
The SNMP Views tab has the following controls. See Table 15.
Perform the following functions in the Views tab:
• Select a single row in the table to populate the associated editing fields with the contents of
that row.
• Select one or more rows to enable the Delete button and delete views from the table.
• Click Clear to deselect all rows and empty the edit fields, making it easier to create a new view.
TABLE 15 SNMP Views tab controls
Column Content
View Name Displayed view name. Once created, it cannot be altered; it can only be deleted.
MIB Subtree MIB Subtree that this view displays.
View Type The view type for this view. Options are Included or Excluded.
