58 Brocade Virtual ADX Graphical User Interface Guide
53-1003242-01
Configuring network interfaces and IP addresses
6
3. Click New.
The IP Interface tab is displayed. See Figure 45.

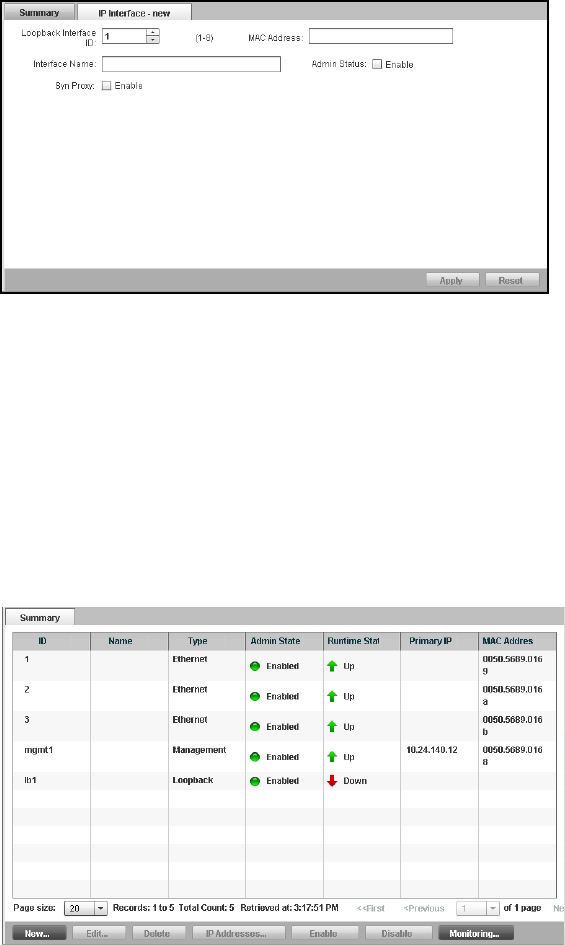

FIGURE 45 Loopback IP Interface tab
4. Provide the following information:
• Loopback Interface ID: Select an ID number from 1 to 8 to assign to the interface.
• MAC Address: Enter the optional MAC address of the interface.
• Interface name: Enter an optional unique name for the interface.
• Admin Status: Select the Enable check box to enable the interface. By default, the
interface is enabled.
5. Click Apply to save your entries. The Summary page displays the loopback interface with an
lbnumber ID and a Loopback Type, as shown in Figure 46.
FIGURE 46 Loopback interface on Summary page
Click Reset to revert the configuration to the previous configured values.
For more information on the network interfaces, refer to the Brocade Virtual ADX Switch and Router
Guide.
