62 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

Configuring VLANs

You can configure two types of Virtual Local Area Networks (VLANs); port-based VLANs and IP

subnet VLANs. To configure VLAN on the Brocade Virtual ADX, perform the following steps within

the Configure tab.

1. Click Network on the menu bar.

2. From the sidebar, select VLAN.

The Summary page is displayed, as shown in Figure 50.

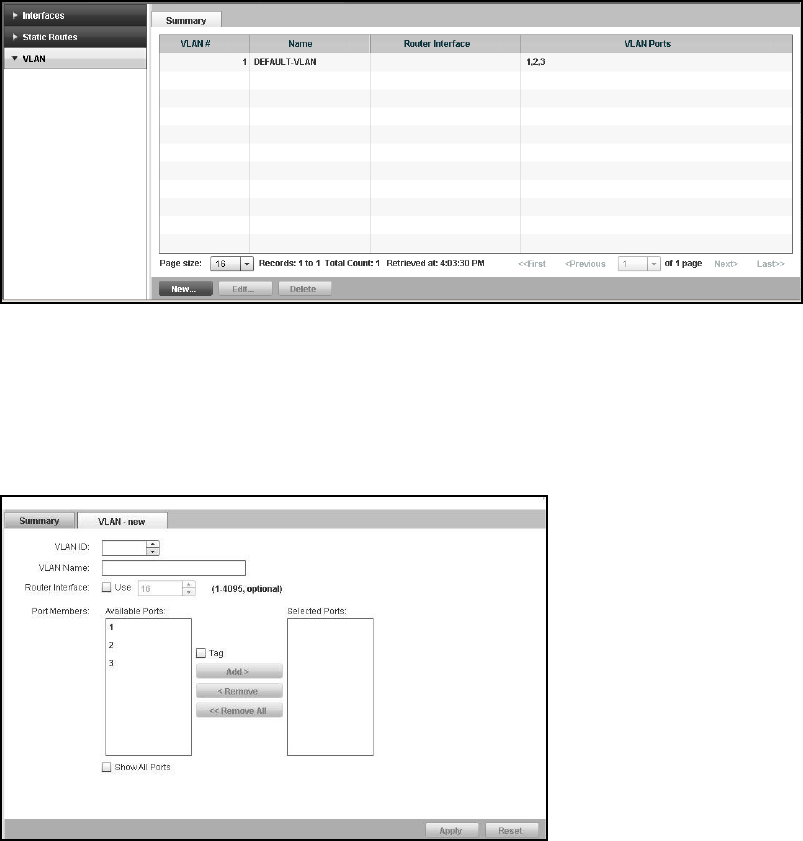

FIGURE 50 VLAN summary

The Summary page displays a list of configured VLANs. Each entry in the list includes VLAN

name, router interface, and VLAN ports.

3. Click New at the bottom of the Summary page.

The VLAN - new page tab is displayed, as shown in Figure 51.

FIGURE 51 Configuring a VLAN
