Virtual servers
7
• Under Rate Limiting, you can configure the following information:
• Maximum TCP Connection Rate: Enter the maximum number of TCP connections per
second. There is no default. The maximum connection rate can be from 1 to
4000000.
• Maximum UDP Connection Rate: Enter the maximum number of UDP connections per
second. There is no default. The maximum connection rate can be from 1 to
4000000.
5. Click Advanced to configure the advanced parameters on the virtual server.

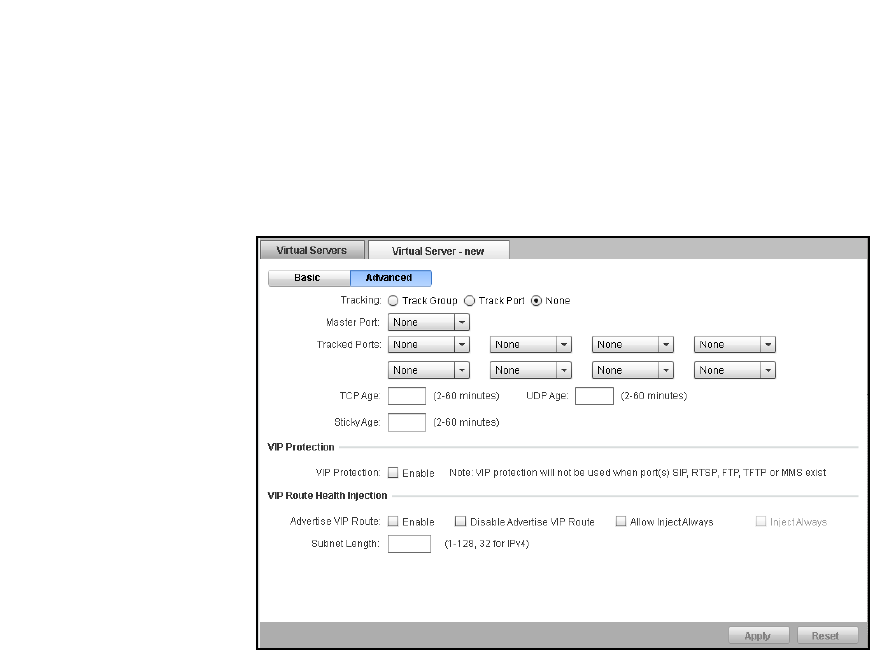

The Advanced tab is displayed, as shown in Figure 57.
FIGURE 57 Configuring advanced parameters
6. Provide the following information:
• Tracking: Click one of the following options.
• Track Group — Allows the client to use the same server for applications associated
with the grouped ports, as long as all the ports in the group are active.
• Track Port — Allows the client to use the same server for applications associated with
the grouped ports, as long as the primary port is active.
• None — Allows the client to disable the tracking option on the real server.
• Master Port: Select a master port from the list.
• Tracked Ports: Select tracked ports from the list.
• TCP Age: Specify the number of minutes the Brocade Virtual ADX allows a TCP connection
to remain inactive before closing the connection. The range is from 2 through 60 minutes.
The default value is 30 minutes.
• UDP Age: Specify the number of minutes the Brocade Virtual ADX allows a UDP connection
to remain inactive before closing the connection. The range is from 2 through 60 minutes.
The default value is 5 minutes.
• Sticky Age: Specify the number of minutes a sticky server connection can remain inactive
before aging out. The range is from 2 through 60 minutes. The default value is 5 minutes.
• Under VIP Protection, Select the Enable check box to enable VIP protection.
