78 Brocade Virtual ADX Graphical User Interface Guide

53-1003242-01

Real servers

6. Click the New button to display the Virtual Server Port - new page and use this page to

configure a virtual server port.

Real servers

Real servers are the actual application servers that handles all the client service requests. To view

basic real servers configured on the Brocade Virtual ADX, perform the following steps within the

Configure tab.

1. Click Traffic on the menu bar.

2. From the sidebar, select Real Servers.

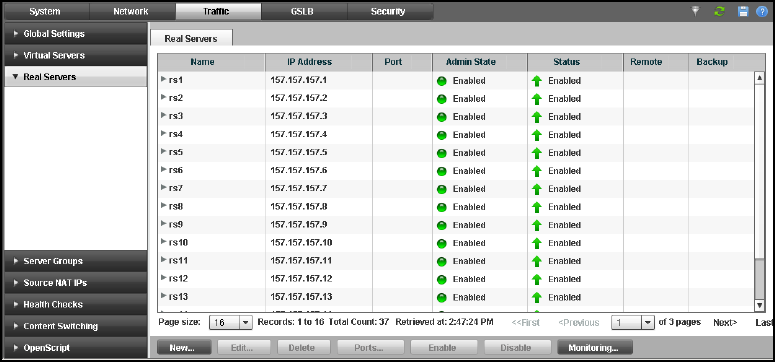

The Real Servers page is displayed, as shown in Figure 64.

FIGURE 64 Real server summary

The Real Servers page displays a list of all the configured real servers. Each entry in the list

includes the real server name, IP address, port, and status.
