Real servers
7
4. Click the Ports button to display the Real Server Ports tab for the selected real server entry.

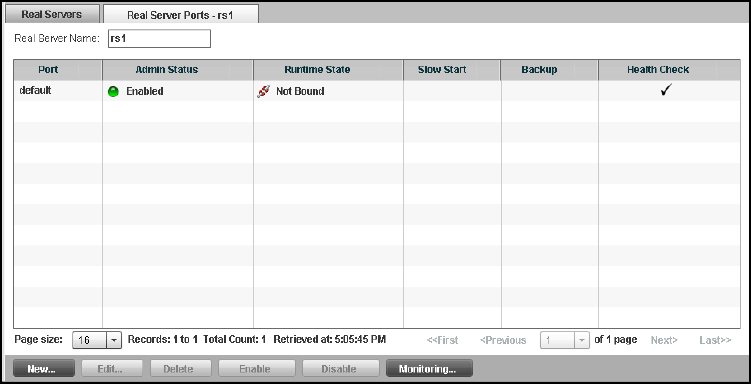

FIGURE 68 Real Server ports page
From this tab, you can add, edit, enable, disable or monitor a real server port.
Creating a real server port
To configure a basic real server port on the Brocade Virtual ADX, perform the following steps within
the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Real Servers.
3. Select the real server from the list in the Real Servers page and click Port.
The Real Server Ports page tab is displayed, as shown in Figure 68.
4. Click New at the bottom of the Real Server Ports page.
The Basic configuration tab is displayed, as shown in Figure 69.
