Configuring health check parameters for a real server port
To configure the health check parameters for a real server port on the Brocade Virtual ADX,
perform the following steps within the Configure tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Real Servers.
3. Select the real server from the list in Real Servers page and click Port.
4. Click New at the bottom of the Real Servers page.
5. Click Health Check tab.
The Health Check page is displayed, as shown in Figure 70.

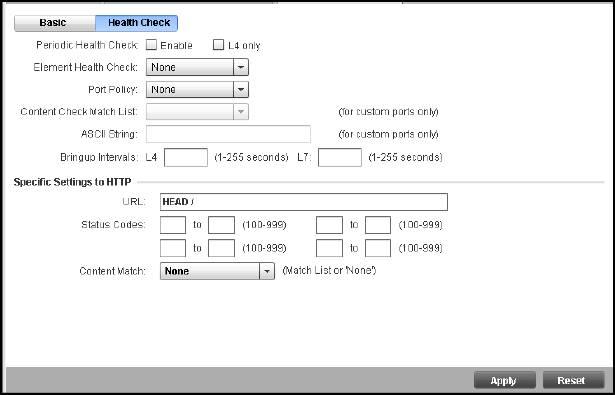

FIGURE 70 Configuring health check parameters
6. Provide the following information:
• Periodic Health Check: Select the Enable check box to enable the Layer 3 health check for
the local real server.
• Select the L4 Only check box to enable a Layer 4 check, if the application port is not one of
the applications that is known to the Brocade Virtual ADX.
• Element Health Check: Select a health check on the Brocade Virtual ADX to allow a health
check that is customized for a given application server.
• Port Policy: Select a port policy from the list to reduce the configuration required for health
checks and provide more flexibility while configuring health checks.
• Content Check Match List: Select a match list to be used for content check for custom
ports only.
• ASCII String: Enter the ASCII string to send for custom ports only.
• Bringup Intervals: Enter the Layer 4 and Layer 7 bringup intervals to enable the health
check policy during initial bringup of the server in seconds. The range is from 1 through
255 seconds.
7. Under Specific settings to HTTP, enter the following information:
